GSENSE Series

The GSENSE series is a world leading scientific CMOS image sensor family, designed with correlated multiple sampling for extreme low noise, true HDR for high dynamic range and optional backside illumination technology for quantum efficiency of up to 97%. Primary applications include scientific imaging, medical imaging, spectroscopy, fluorescence imaging, astronomy, high energy physics, and high-end surveillance.

Large Format

BSI

High Dynamic

Low Noise

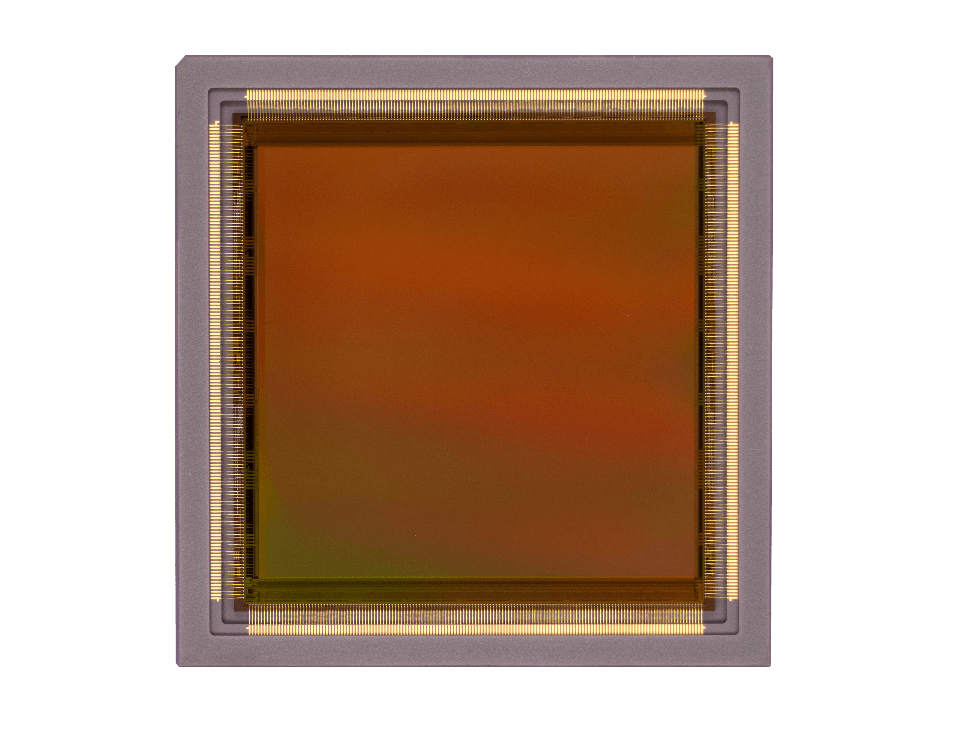

GSENSE4040

16 MP 9 μm 3.3" ROLLING SHUTTER IMAGE SENSOR

GSENSE4040 is a 16.8 Mega pixel resolution CMOS image sensor. Featured with five transistor (5T) HDR pixel design on a 9 μm pitch, the sensor could achieve 3.7 e‾ dark noise and 74.2 ke‾ FWC simultaneously in HDR mode. GSENSE4040’s maximum frame rate (will full resolution) is 24 fps in HDR mode. It supports 2 x 2 charge binning mode in which x 4 frame rate is achieved. These features make GSENSE4040 an ideal image sensor for various applications.
GSENSE4040 is offered in two variations: CMN and CMT. CMN is a monochrome sensor without microlens array and protected by a removable glass lid, which is ideal for X-ray imaging, charged particle detection, and micro-CT application; while CMT is a monochrome sensor with microlens array and sealed with D263® T lids with anti-reflective coating on both sides, ideal for medical imaging and astronomy applications.

Key Features and Benefits

Peak QE of 73.9%

Large Format

High Dynamic Range

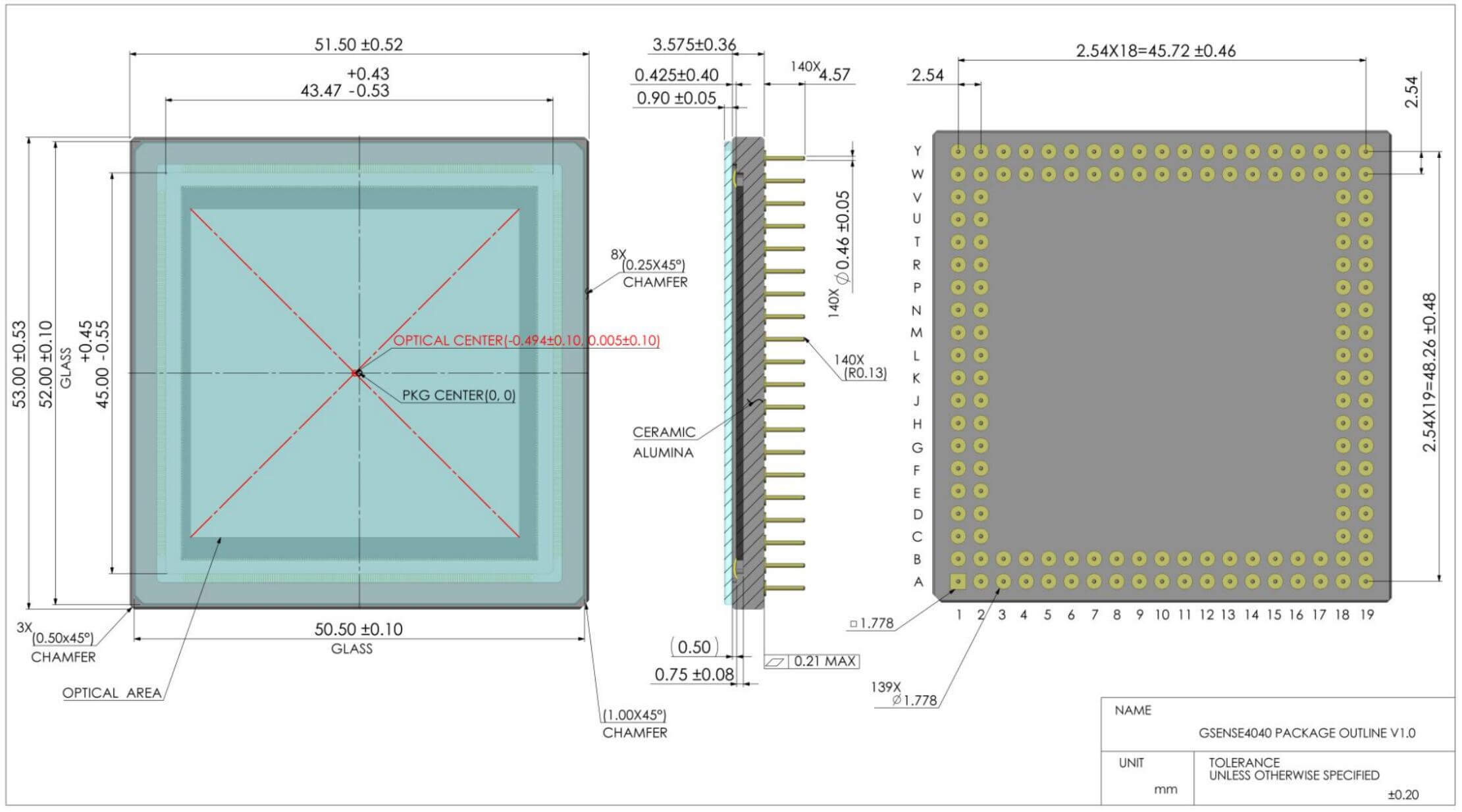

Package Drawing

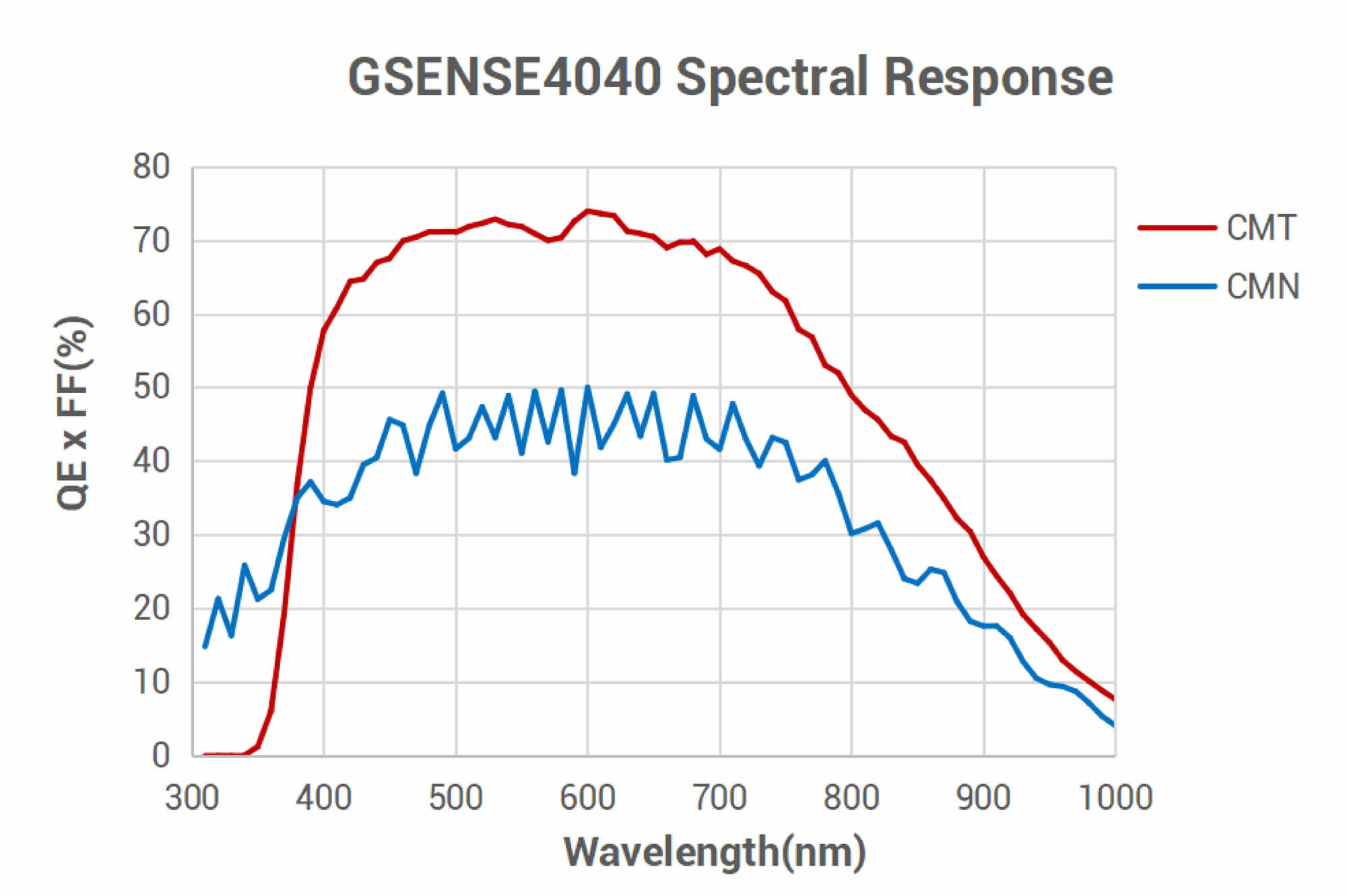

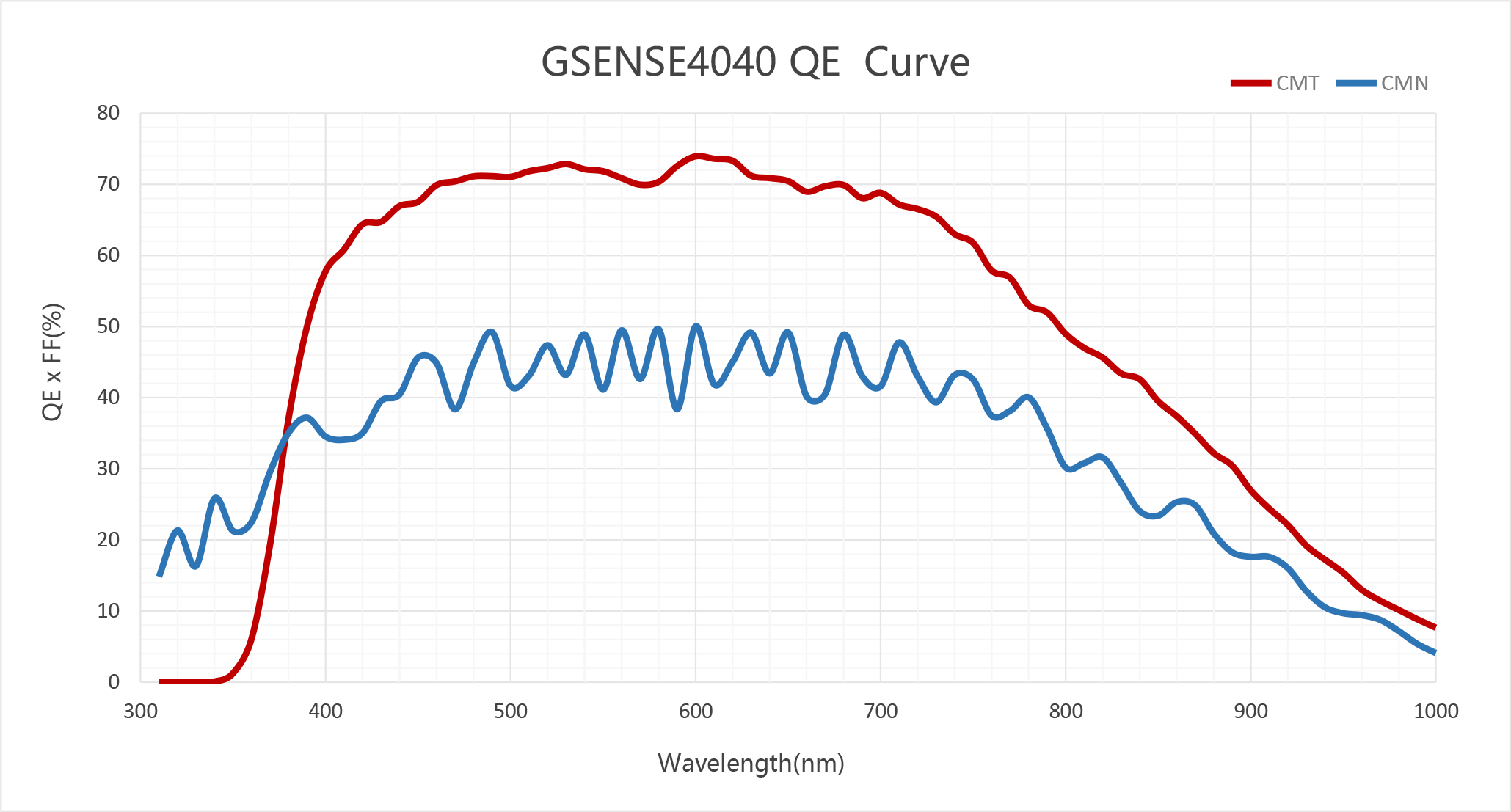

QE Curve

GSENSE4040

Specifications

Resolution

16.8 MP

Nr of Active Pixels

4096 (H) x 4096 (V)
Optical Format

3.3"

Pixel Size

9 μm x 9 μm
Photosensitive Area

36.864 mm x 36.864 mm

Shutter Type

Rolling Shutter
Peak QE

73.9% (600 nm)

Full Well Capacity

74.2 ke‾
Temporal Noise

3.7 e⁻

Dark Current

12.2 e⁻/pixel/s (25 °C)
Dynamic Range

86 dB

Max Frame Rate

24 fps
Max. SNR

48.5 dB

ADC

12 bit
Output Format

18 ch LVDS

Max. Data Rate

10.8 Gbps
Chroma

Mono

Power Consumption

< 1.4 W
Supply Voltage

3.3 V (analog) 1.8 V (digital)

Package

140 pins PGA (51.5 mm x 53.0 mm)
Availability

Mass Production (MP)

Product Number

GSENSE4040-CVM-NPN-AR1

Monochrome version without microlens, 140 pins PGA package, Removable D 263^® T eco glass lid without AR coating,Grade 1.
GSENSE4040-CVM-NPT-BB1

Monochrome version with microlens, 140 pins PGA package, Sealed D 263^® T ecoglass lid with AR coating on both sides, Grade 1.
EVA-4040F-RT12

Evaluation board Operation mode: HDR mode Lens holder: T-mount Interface: Camera link MDR-MDR

GSENSE4040-CVM-NPN-AR2

Monochrome version without microlens, 140 pins PGA package, Removable D 263^® T eco glass lid without AR coating,Grade 2.
GSENSE4040-CVM-NPT-BB2

Monochrome version with microlens, 140 pins PGA package, Sealed D 263^® T ecoglass lid with AR coating on both sides, Grade 2.
