Resolution

2 K

Nr of Active Pixels

2000 (H) x 1 (V)

Optical Format

25 mm

Pixel Size

12.5 μm x 1000 μm

Shutter Type

Global Shutter

Full Well Capacity

2 Me⁻(LG) 0.18 Me⁻(HG)

Temporal Noise

675 e⁻ (LG) 215 e⁻ (HG)

Max Line Rate

240 kHz 350 kHz (1x2 binning)

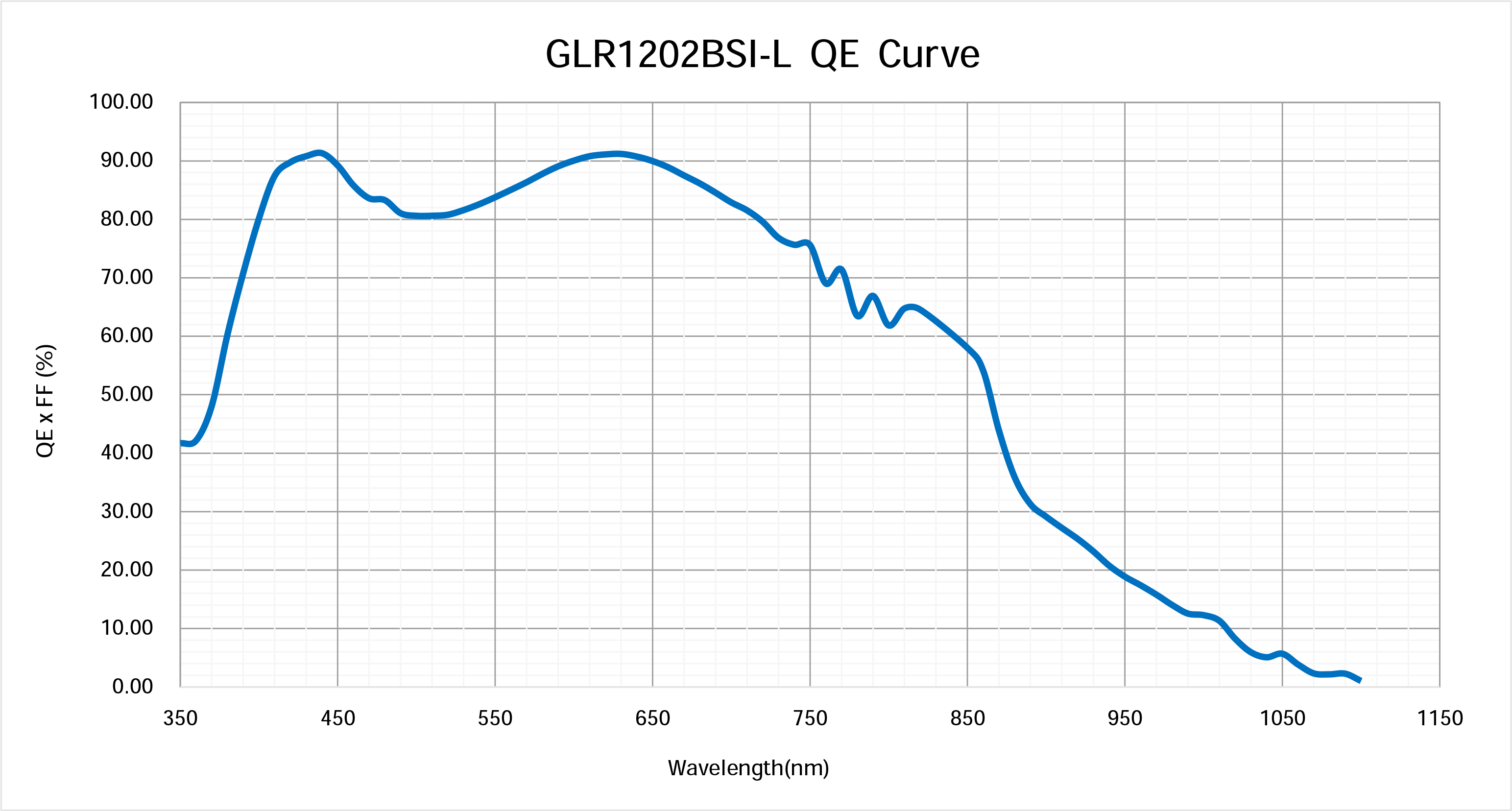

Peak QE

91 % (440 nm)

Dynamic Range

69 dB (LG) 58 dB (HG)

Dark Current

T.B.D

Max. SNR

63 dB

ADC

12 bit

Output Format

5xSub-LVDS

Max. Data Rate

6 Gbps

Chroma

Mono

Power Consumption

< 500 mW

Supply Voltage

3.3 V (Analog) 1.5 V (Digital) 1.8 V (IO)

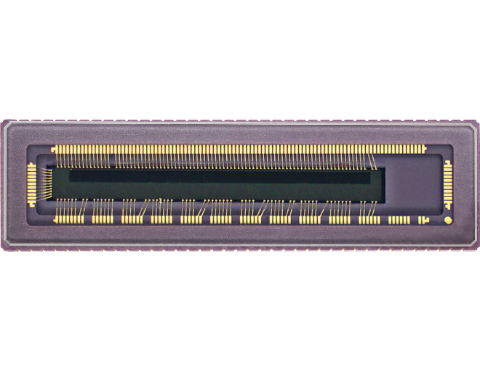

Package

76 pins CLCC (40 mm x 11 mm)

Availability

Engineering Samples (ES)
