GMAX Series
GMAX is Gpixel’s global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Global Shutter
1/1.7"-Medium
2.4MP-152MP
High Speed
GMAX2505
5 MP 2.5 μm 1/2" GLOBAL SHUTTER IMAGE SENSOR
GMAX2505 achieves more than 65% peak QE and excellent angular response. Thanks to the latest light pipe technology, more than -80dB shutter efficiency can be achieved. The sensor supports both 10bit and 12bit output, with frame rate up to 290fps and 121fps. It is assembled in a ceramic Land Grid Array (LGA) package, allowing easy integration and mass production. GMAX2505 is pin-compatible with GMAX0505, GMAX2509 and GMAX2518, where GMAX0505 is a 25MP (5120x5120) 1.1" sensor, GMAX2509 is a 9MP (4200x2160) 2/3" sensor, and GMAX2518 is a 18MP (4508x4096) 1" sensor. All four sensors are designed with the same 2.5μm global shutter pixel architecture and same sequencer operation, allowing reduced system costs and R&D cost for customers.
  • Key features and Benefits

    High resolution GS in 1/2" optical format

    High data throughput > 26 Gbps

    Low noise global shutter

  • Package Drawing

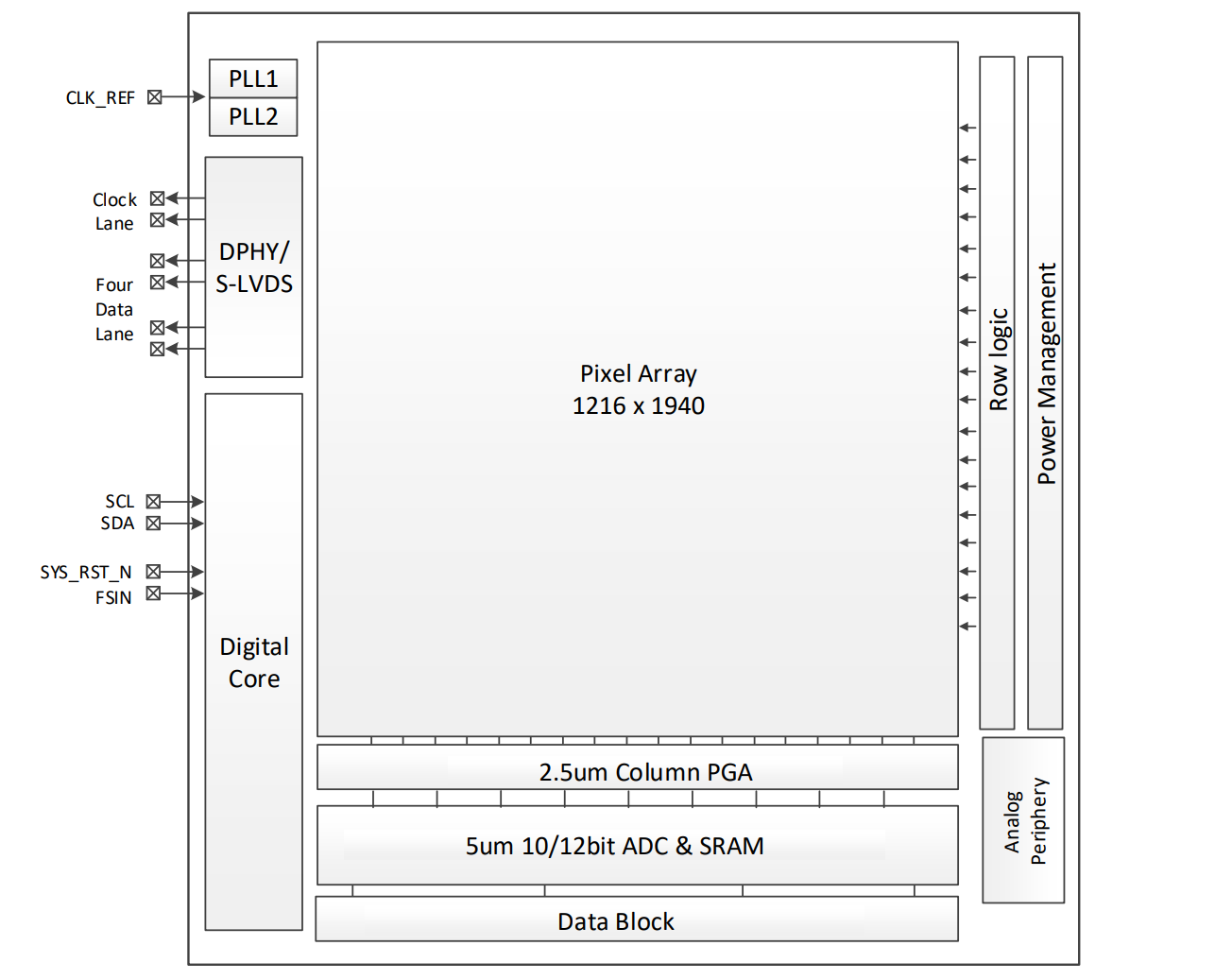

  • Block Diagram

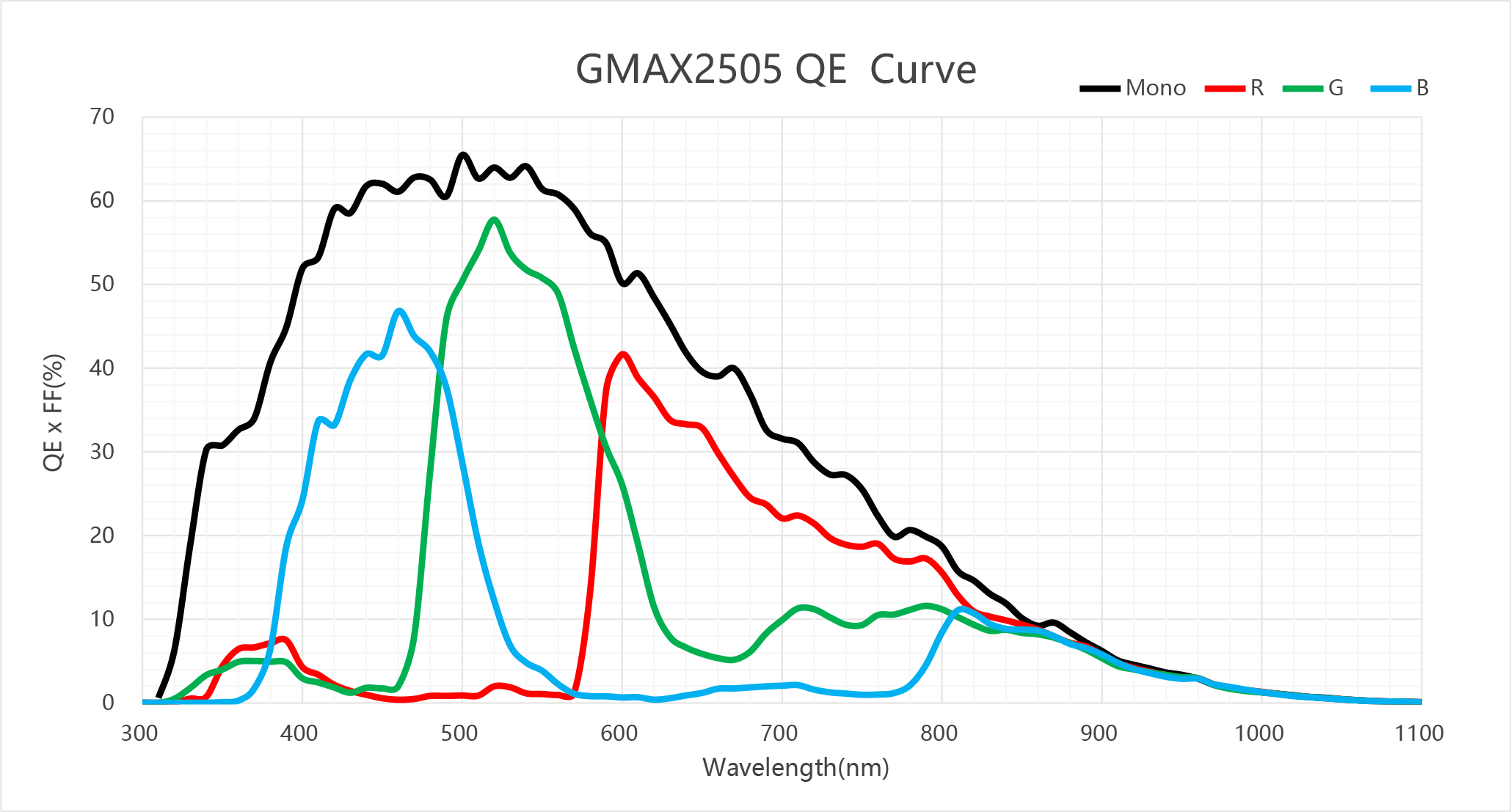

  • QE Curve
GMAX2505
GMAX2505
Specifications
  • Resolution

    5 MP

    Nr of Active Pixels

    2600 (H) x 2160 (V)

  • Optical format

    1/2″

    Pixel size

    2.5 μm x 2.5 μm

  • photosensitive area

    6.5 mm x 5.4 mm

    Shutter type

    Global shutter

  • Peak QE

    65.5% @ 500 nm

    Full well capacity

    6.7 ke‾

  • Parasitic Light Sensitivity

    -80.0 dB

    Temporal noise

    1.8 e‾

  • Angular response

    > 13 (80% response)

    Dark Current

    1.2 e‾/pixel/s @ 30℃

  • Max. SNR

    38.2 dB

    Dynamic Range

    65.5 dB @12 bit、62.1 dB @10 bit

  • Max Frame rate

    290 fps @ 10 bit

    ADC

    10/12 bit

  • Output format

    20 ch sub-LVDS

    Channel multiplexing

    20/10/8/6/4/2

  • Max. Data rate

    19.20 Gbps

    Power consumption

    <0.6 W @ 12 bit 、 <0.9 W @ 10 bit

  • Supply voltage

    3.3V/1.3V (analog), 1.8V-3.3V (IO), 1.3V (digital)

    Package

    226 pins LGA (19.0 mm x 17.5 mm)

  • Chroma

    Mono & RGB Color

    Availability

    Mass Production (MP)

Product Number
  • GMAX2505-BVM-HST-AU1
    GMAX2505-LGA2; Monochrome, microlens, High speed version, 290fps @ 10bit 20 x Sub-LVDS. Ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating, Grade 1
  • GMAX2505-BVC-HST-AU1
    GMAX2505-LGA2; CFA, microlens, High speed version, 290fps @ 10bit 20 x Sub-LVDS. Ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating, Grade 1
  • E-GMAX2505-02-1
    Evaluation board Operation mode:10bit mode Lens holder: C-mount Interface: USB 3.0
  • GMAX2505-BVM-NST-AU1
    GMAX2505-LGA2; Monochrome, microlens, Normal speed version, 121fps @ 12bit 10 x Sub-LVDS. Ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating, Grade 1
  • GMAX2505-BVC-NST-AU1
    GMAX2505-LGA2; CFA, microlens, Normal speed version, 121fps @ 12bit 10 x Sub-LVDS. Ceramic 226 pins LGA, Sealed D 263® T eco glass with no AR coating, Grade 1
