BSI
Ultra low noise 0.28 e‾
High speed 300 fps

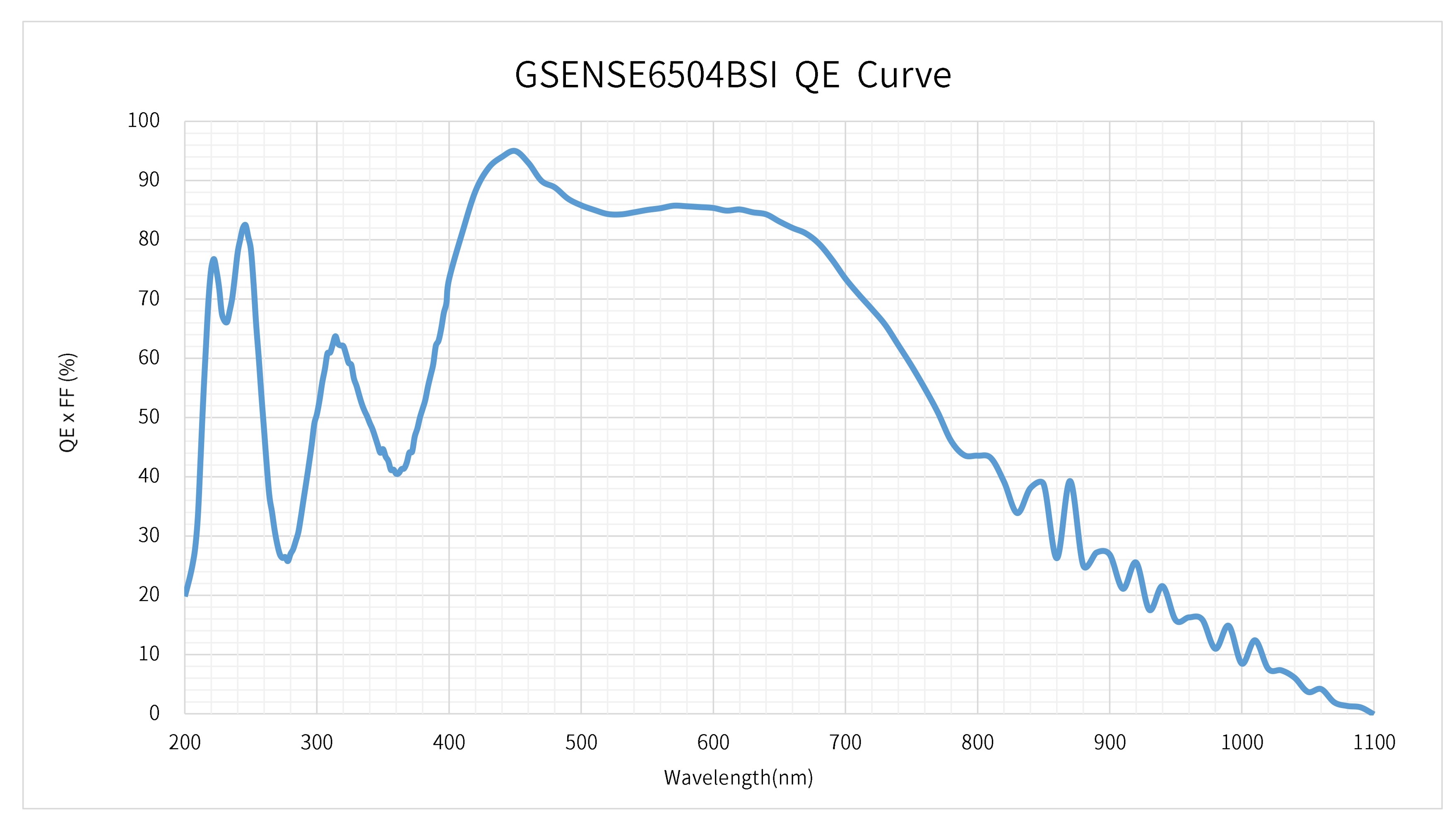

Peak QE 95% (450 nm)
Low dark current: 0.004e‾/s/p (-30℃)
Average QE >50% (200-300 nm)
Resolution
4 MP
Nr of Active Pixels
2048 (H) x 2048 (V)
Optical format
1.2"
Pixel size
6.5 μm x 6.5 μm
Photosensitive area
13.3 mm x 13.3 mm
Shutter type
Rolling Shutter
Peak QE
95% Peak QE (450 nm)
Full well capacity
15 ke‾
Temporal noise
0.4 e⁻(median) / 0.45 e⁻(rms) (Low Noise) 0.8 e⁻(median) / 0.85 e⁻(rms) (HDR) 0.7 e⁻(median) / 0.75 e⁻(rms) (STD)
Dark Current
0.004 e‾/pixel/s (-30℃)
Dynamic Range
91 dB(median) / 90 dB(rms) (Low Noise ) 85 dB(median) / 84 dB(rms) (HDR)
Max Frame rate
100 fps (Low Noise) 170 fps (HDR) 300 fps (STD)
Max. SNR
41 dB
ADC
12 bit
Output format
16 pairs LVDS (1.2 Gbps)
Channel multiplexing
-
Max. Data rate
19.2 Gbps
Chroma
Mono
Power consumption
1.6 W
Supply voltage
3.3 V (analog) 1.5 V (digital) 1.8 V - 3.3 V (IO)

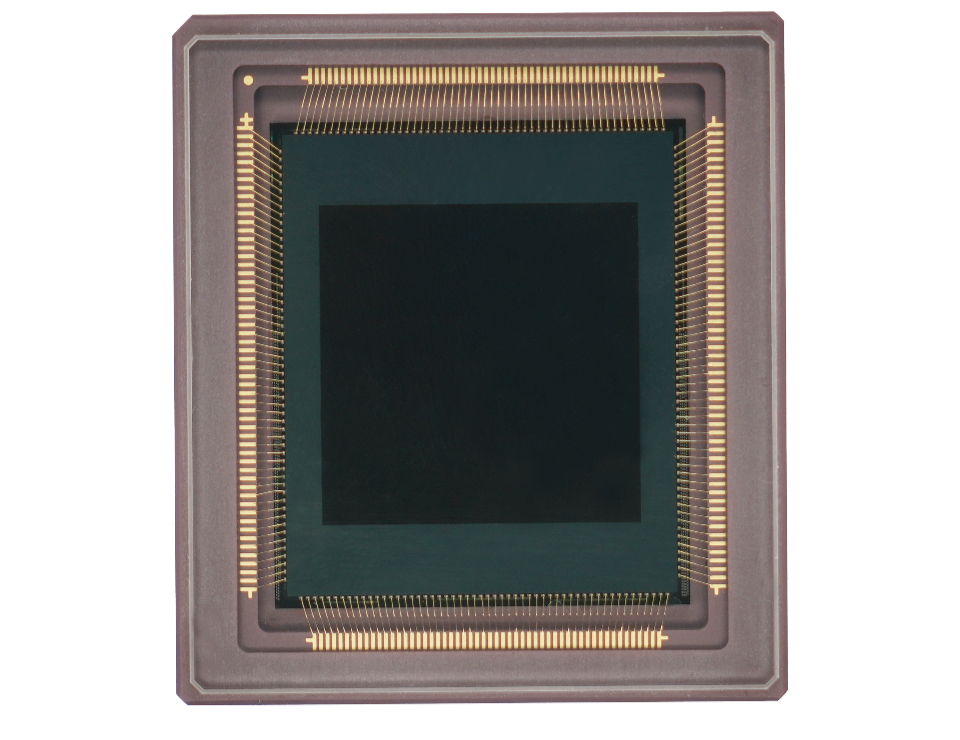

Package
153 pins μPGA (26.1 mm x 29.5 mm)
Availability
Engineering Samples (ES)
