GL Series
The GL sensor family from Gpixel comprises a wide range of horizontal resolutions, ranging from 2k to 16k, with line rates of up to 200 kHz. These sensors feature pixel sizes of 3.5 µm, 5 µm, 7 µm, and 14 µm, providing a comprehensive selection to suit diverse line scan applications.
Global Shutter
High Speed
TDI
High Resolution
GL0816
8K 5 μm GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR
Designed for high speed industrial inspection, GL0816 is a line scan CMOS image sensor which consists of 16 lines of 8322 pixels with 5 μm pixel size and 5 μm inter-line space. It supports dual line, 4-line readout and max 8-line with 2-stage on-chip TDI. The maximum line rate of GL0816 is 200 kHz (11 bit, dual-line mode) and 100 kHz (10 bit, 4-line mode). GL0816 is manufactured with Mono or RGBW 4-band CFA which is customized with extremely low color crosstalk to enable accurate image reproduction.
  • Key Features and Benefits

    High Speed

    High Resolution

    TDI

  • Package Drawing

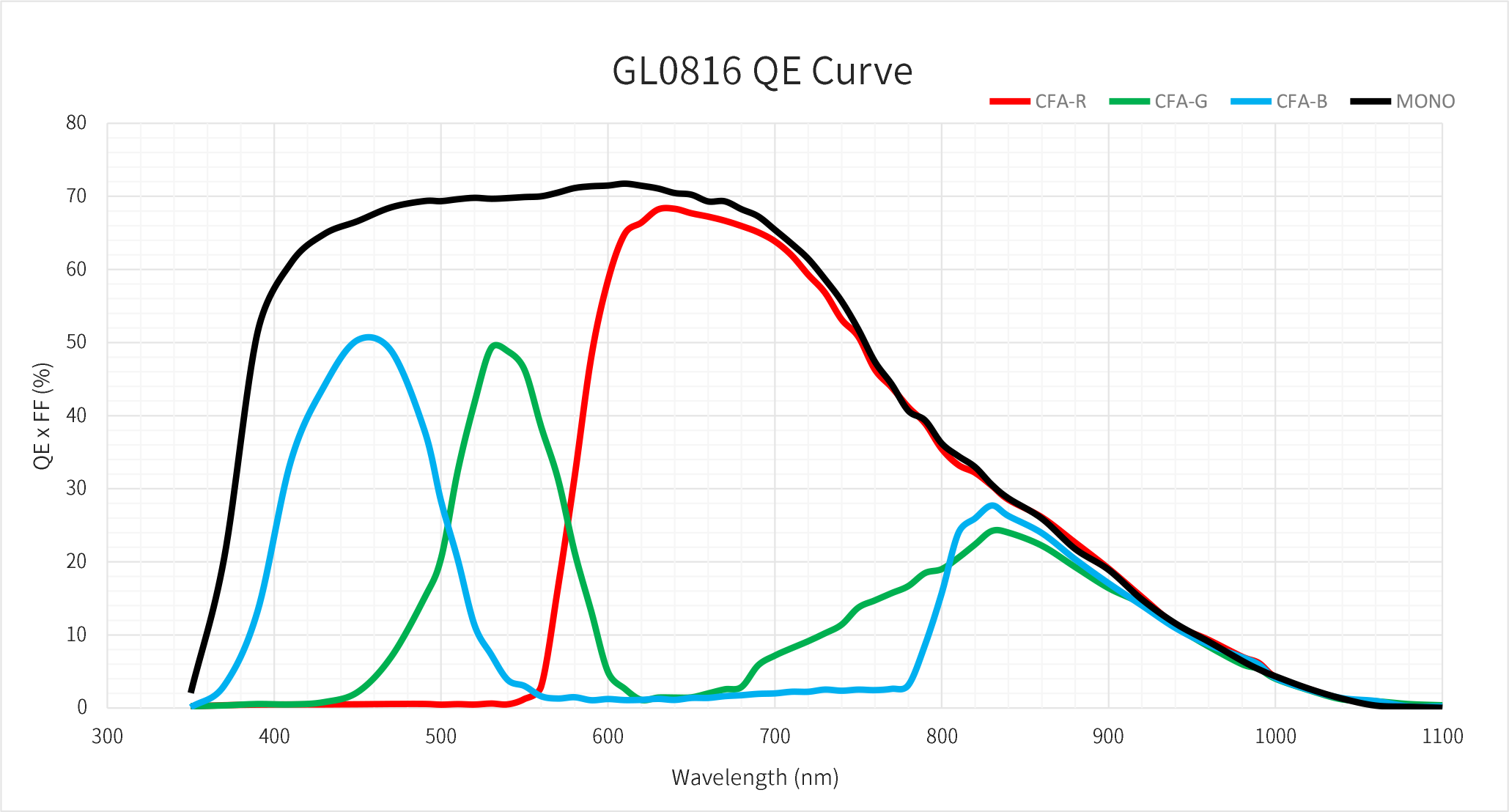

  • QE Curve
GL0816
GL0816
Specifications
  • Resolution

    8 K

    Nr of Active Pixels

    8322 (H) x 16 (V)

  • Optical Format

    41.61 mm

    Pixel Size

    5 μm x 5 μm

  • Full Well Capacity

    17.0 ke‾ (11 bit, dual line) 15.0 ke‾ (10 bit, quad line)

    Temporal Noise

    13.0 e‾ (11 bit, dual line) 17.0 e‾ (10 bit, quad line)

  • Dynamic Range

    62.0 dB (11 bit, dual line) 58.9 dB (10 bit, quad line)

    Max Line Rate

    200k fps (11 bit, dual line) 100k fps (10 bit, quad line)

  • Peak QE

    > 71% (600 nm)

    Shutter Type

    Global Shutter

  • Angular Response

    >15° (85% response)

    Photosensive Area

    41.61 mm

  • Max. SNR

    42 dB

    Dark Current

    6 ke‾/pixel/s (76℃,11 bit) 25 ke‾/pixel/s (76℃,10 bit)

  • ADC

    10/11 bit

    Output Format

    66 ch Sub-LVDS

  • Chroma

    Mono, RGB Color

    Power Consumption

    < 4 W

  • Supply Voltage

    3.3 V (analog) 2 V (digital/LVDS) 2.2 V (ADC)

    Package

    258 pins μPGA (55.8 mm x 18.1 mm)

  • Max. Data Rate

    800 Mbps

    Availability

    Mass Production (MP)

Product Number
  • GL0816-BVM-NUT-BU1
    Mono version with microlenses 258 pins micro-PGA package Sealed D 263® T eco glass lid with AR coating on both sides
  • GL0816-BVC-NUT-BU1
    RGBW version with microlenses 258 pins micro-PGA package Sealed D 263® T eco glass lid with AR coating on both sides
