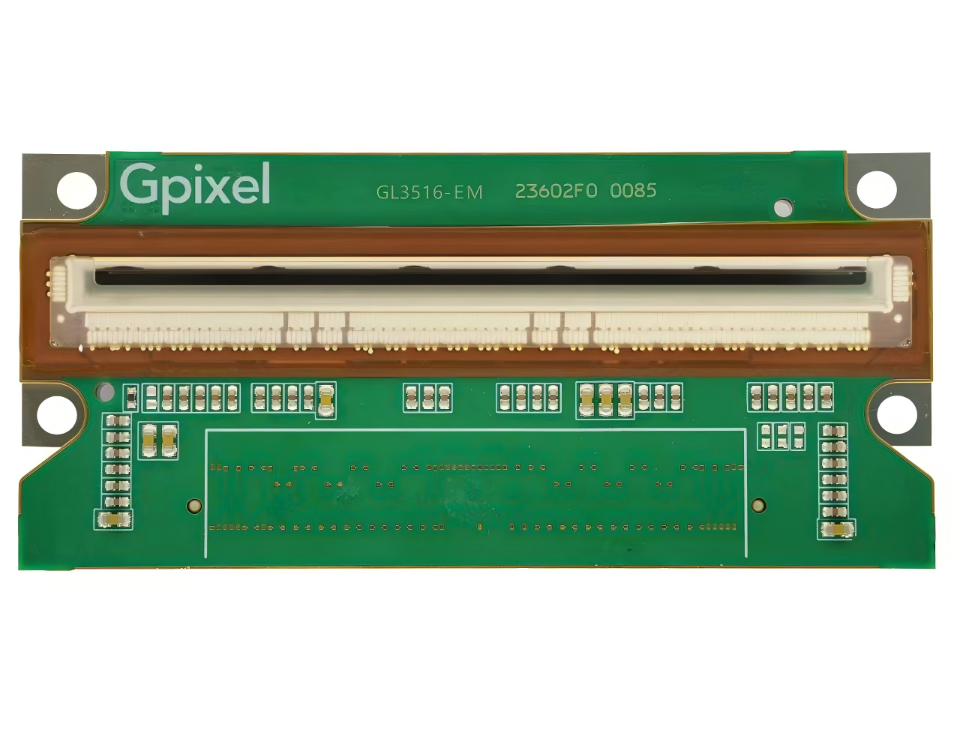

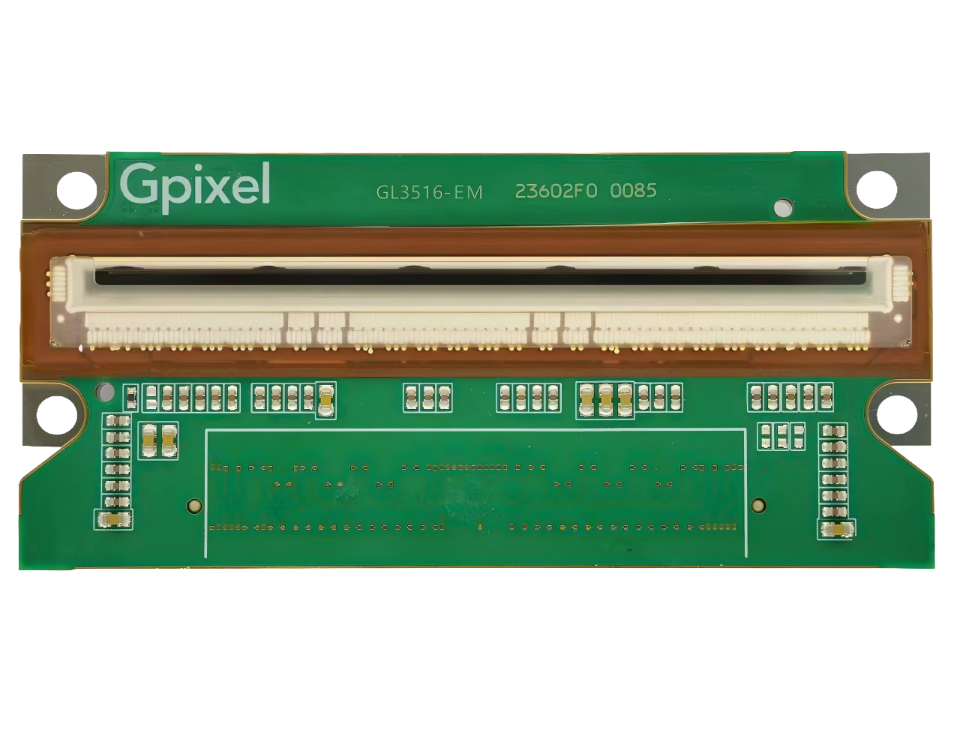

GL3516
3.5 μm 16K RESOLUTION GLOBAL SHUTTER LINE SCAN CMOS IMAGE SENSOR
GL3516 is a 16384 x 2 resolution, 3.5 μm square pixel, line scan CMOS image sensor that supports maximum 120 kHz line rate in single line mode and 60 kHz line rate in dual line mode. GL3516 is pin and footprint compatible with Gpixel’s existing GL7008 8K line scan sensor its features makes is an ideal solution for industrial inspection applications benefitting from high-speed scanning and 16K resolution, including high end inspection production inspections for lithium battery testing, flat panel displays, PCBs, labels, and railway inspection. GL3516 is offered in both color and monochrome versions. The monochrome sensor support single and dual line modes. The color sensor support dual line mode.GL3516 is assembled in a COB package with WCu heat sink for optimal heat dissipation and with connector for easy integration.
  • Key Features and Benefits

    High Speed

    High Resolution

    Low Power Consumption

    Easy Integration
  • Package Drawing

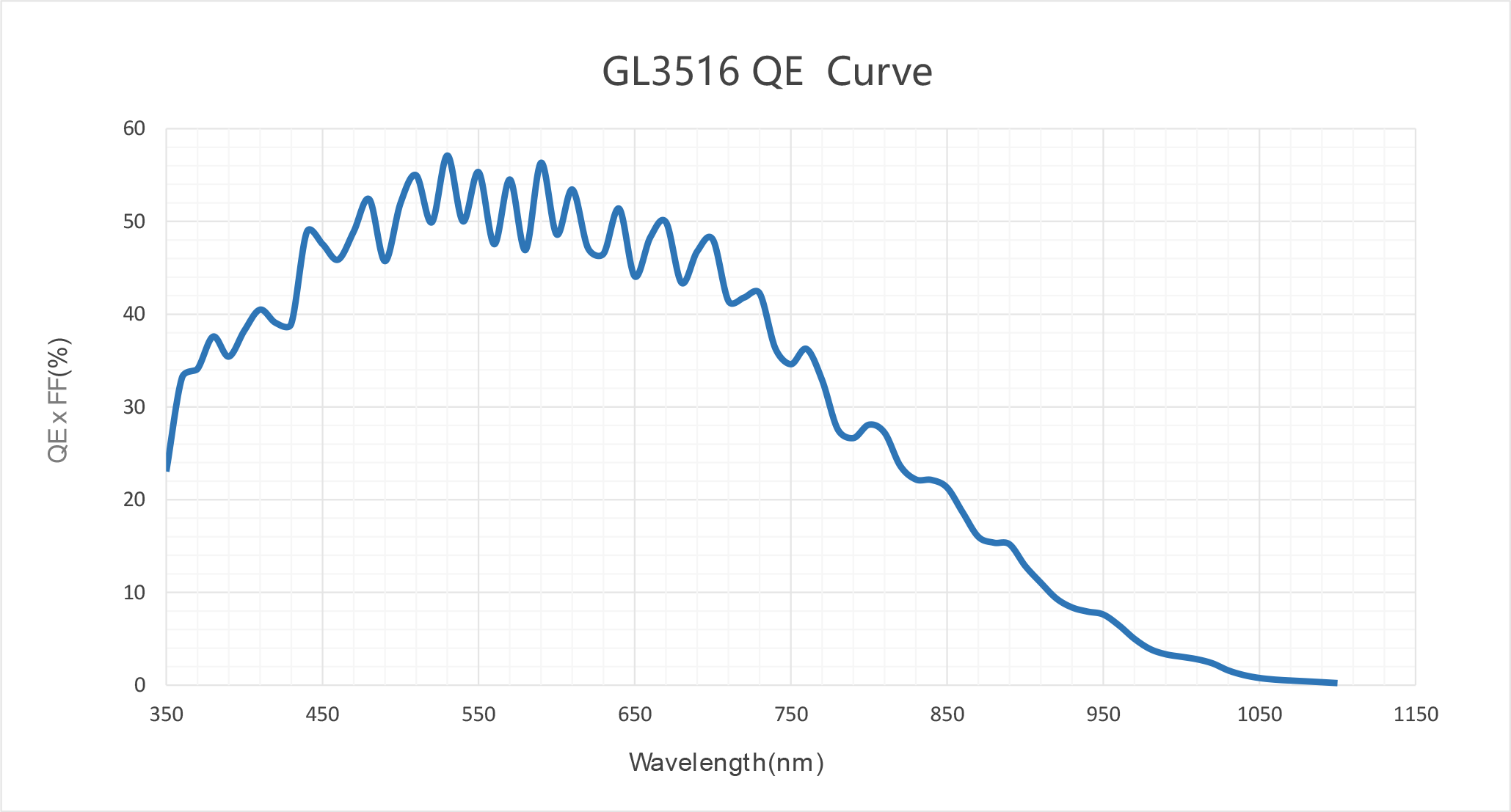

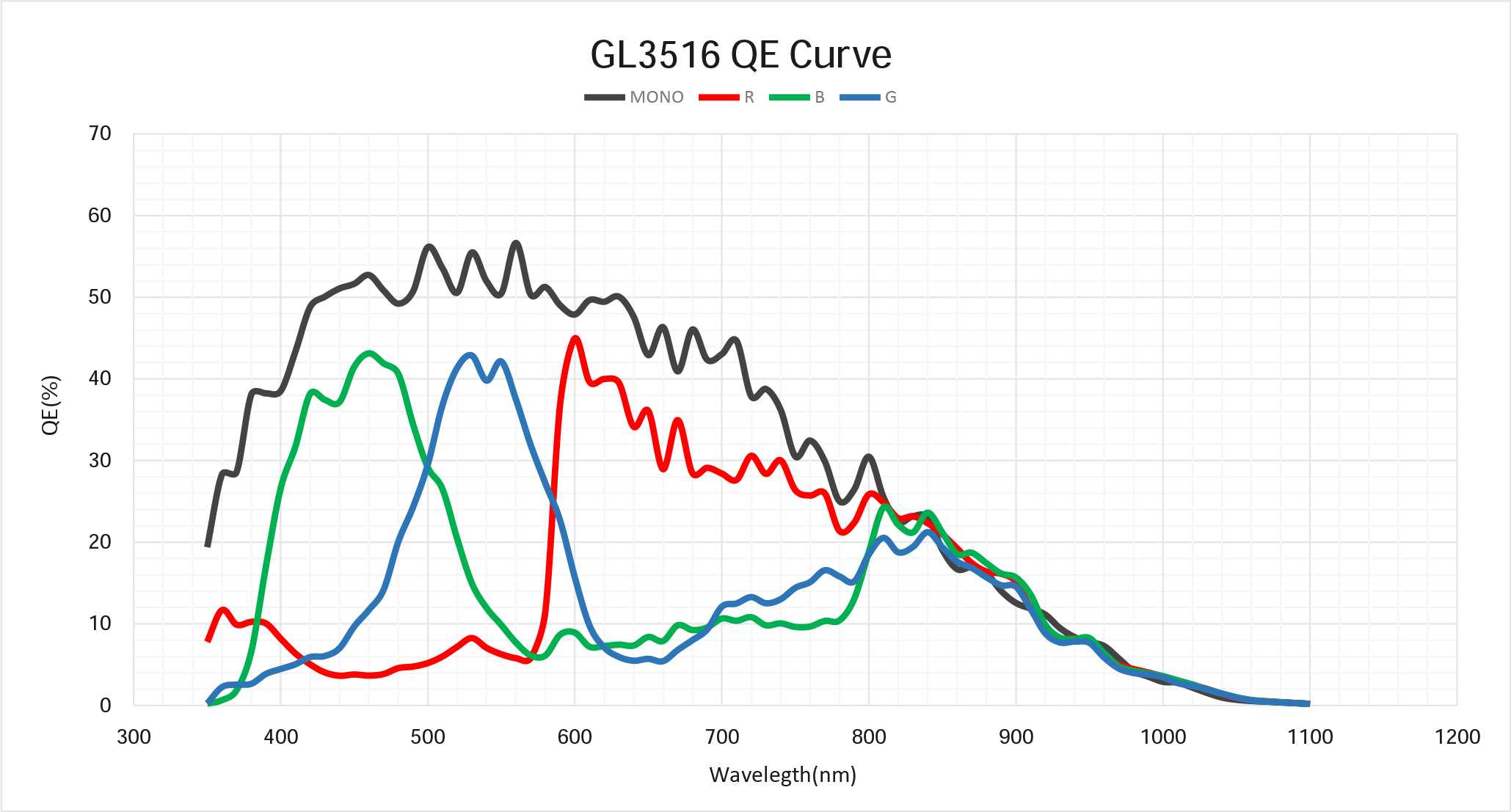

  • QE Curve
GL3516
GL3516
Specifications

  • Resolution

    16 K

    Nr of Active Pixels

    16384 (H) x 2 (V)

  • Optical Format

    57.344 mm

    Pixel Size

    3.5 μm x 3.5 μm

  • Full Well Capacity

    5.6 ke‾

    Temporal Noise

    8.2 e‾

  • Dynamic Range

    56.6 dB

    Max Line Rate

    120 kHz (single line) 60 kHz (dual line)

  • Peak QE

    57.0% (530 nm)

    Shutter Type

    Global Shutter

  • Angular Response

    20° (85% response)

    Photosensive Area

    57.344 mm

  • Parasitic Light Sensitivity

    -

    Dark Current

    0.8 ke‾/pix/s (10 bit)

  • Max. SNR

    37.4 dB

    ADC

    10 bit

  • Output Format

    25 ch Sub-LVDS

    Channel Multiplexing

    25/13/7/4

  • Max. Data Rate

    24 Gbps

    Chroma

    Mono, RGB Color

  • Power Consumption

    3.2 W

    Supply Voltage

    3.3 V (analog) 1.8 V - 3.3 V (IO) 1.8 V (digital)

  • Package

    168 pins COB (71.8 mm x 32.0 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GL3516-BVC-NON-AUD
    Color version, no microlens, sealed D263® T glass without AR coating.
  • GL3516-BVM-NON-AUD
    Monochrome, no microlens, sealed D263® T glass without AR coating.
Download
Flyer
Datasheet
