GLR1002BSI-S
2K 10 μm x 200 μm PIXEL SIZE HIGH SPEED BSI LINE SCAN CMOS IMAGE SENSOR

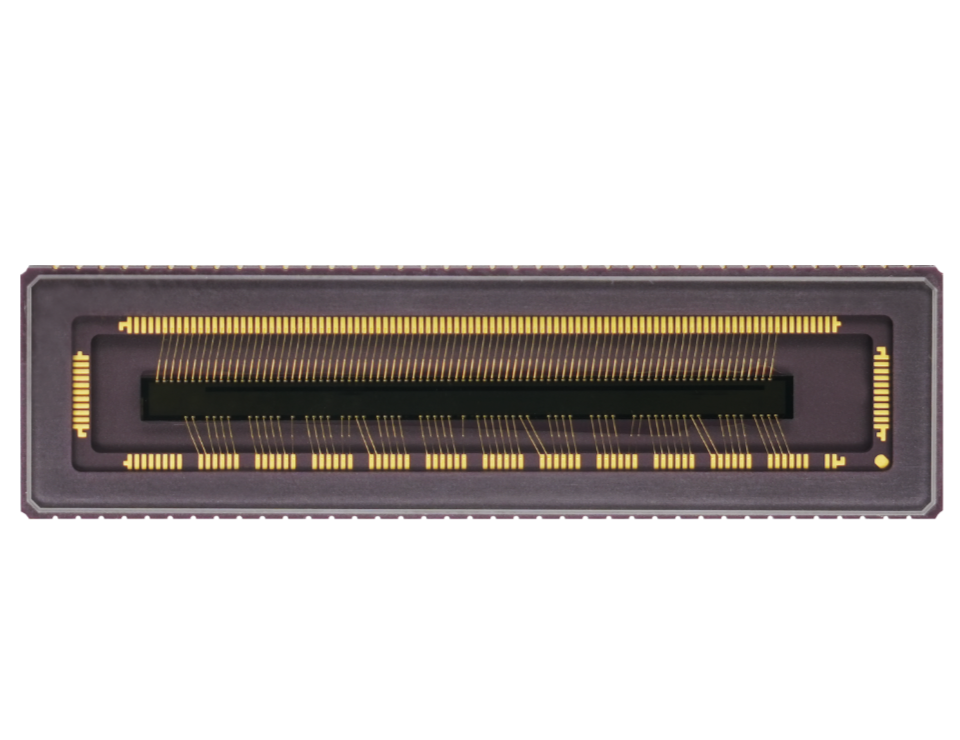

The GLR1002BSI-S is a next‑generation 2K back‑side‑illuminated (BSI) CMOS line‑scan sensor designed to elevate performance in OCT and spectroscopy applications, combining high‑speed readout up to 250  kHz with a rectangular 10 × 200  µm pixel optimized for precise optical alignment. Its advanced BSI global‑shutter architecture delivers 58% QE at 850 nm, a 155  ke‾ full‑well capacity, low read noise, and true 12 /14 bit output, enabling wide dynamic range and high‑contrast fringe reconstruction. High line rates are supported through 1.2  GHz Sub-LVDS outputs with < 450  mW power consumption, providing an efficient balance of speed and system integration. Engineered for both high‑throughput imaging and demanding diagnostic workflows, the GLR1002BSI-S is housed in a robust ceramic CLCC package with a double‑sided AR‑coated glass lid and a compact 40 mm × 11 mm footprint, ensuring stable mechanical integration and excellent alignment in OCT optical paths.
  • Key Features and Benefits

    Pixel Size:10 μm x 200 μm

    Fast Line Rate:250 kHz

    High NIR QE

    12 bit / 14 bit ADC
  • Package Drawing

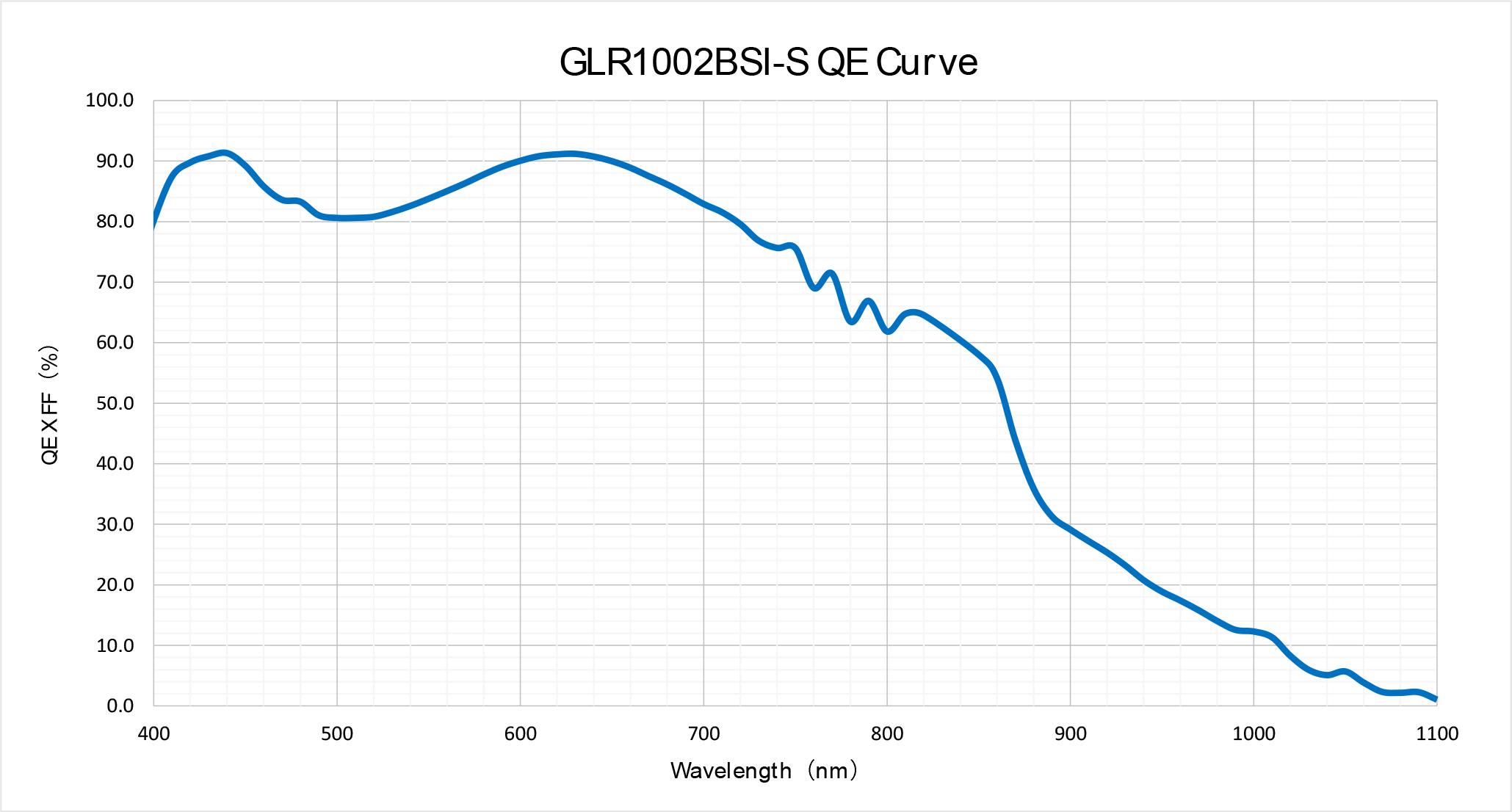

  • QE Curve
GLR1002BSI-S
GLR1002BSI-S
Specifications

  • Resolution

    2 K

    Nr of Active Pixels

    2411 (H) x 1 (V)

  • Optical Format

    24.11 mm

    Pixel Size

    10 μm x 200 μm

  • Shutter Type

    Global Shutter

    Full Well Capacity

    155 ke⁻

  • Temporal Noise

    33.2 e⁻ (12 bit) 20 e⁻ (14 bit)

    Max Line Rate

    250 / 130 kHz (12 bit) 100 kHz (14 bit)

  • Peak QE

    91 % (440 nm) 58 % (850 nm)

    Dynamic Range

    73.4 dB (12 bit) 77.6 dB (14 bit)

  • Dark Current

    T.B.D

    Max. SNR

    51.9 dB

  • ADC

    12/14 bit

    Output Format

    7x Sub-LVDS

  • Max. Data Rate

    8.4 Gbps

    Chroma

    Mono

  • Power Consumption

    < 450 mW

    Supply Voltage

    3.6 V (Analog) 1.5 V (Digital) 1.8 - 3.3 V (IO)

  • Package

    76 x lead CLCC (40 mm x 11 mm)

    Availability

    Engineering Samples (ES)

Ordering Information
  • GLR1002BSI-ABM-NCN-BUE
    Mono, no microlens, ceramic 76 pins CLCC, Sealed D 263® T eco glass with ARC on both side, ES Grade
  • EVK-GLR1002-CLD/-S-1-U
    Evaludation board, USB interface
