Back Side Illumination (BSI) Global Shutter pixels
20 μm Pixel Size delivers exceptional sensitivity
Ultra High Speed: Up to 6400 fps (10 bit)
UV sensitivity with 42 %(260 nm) and 87%(450 nm)
Nr of Active Pixels
1280 (H) x 1024 (V)
Optical Format
32.8 mm
Pixel Size
20 μm x 20 μm
Photosensitive Area
25.60 mm x 20.48 mm
Shutter Type
Global Shutter
Parasitic Light Sensitivity
120 dB

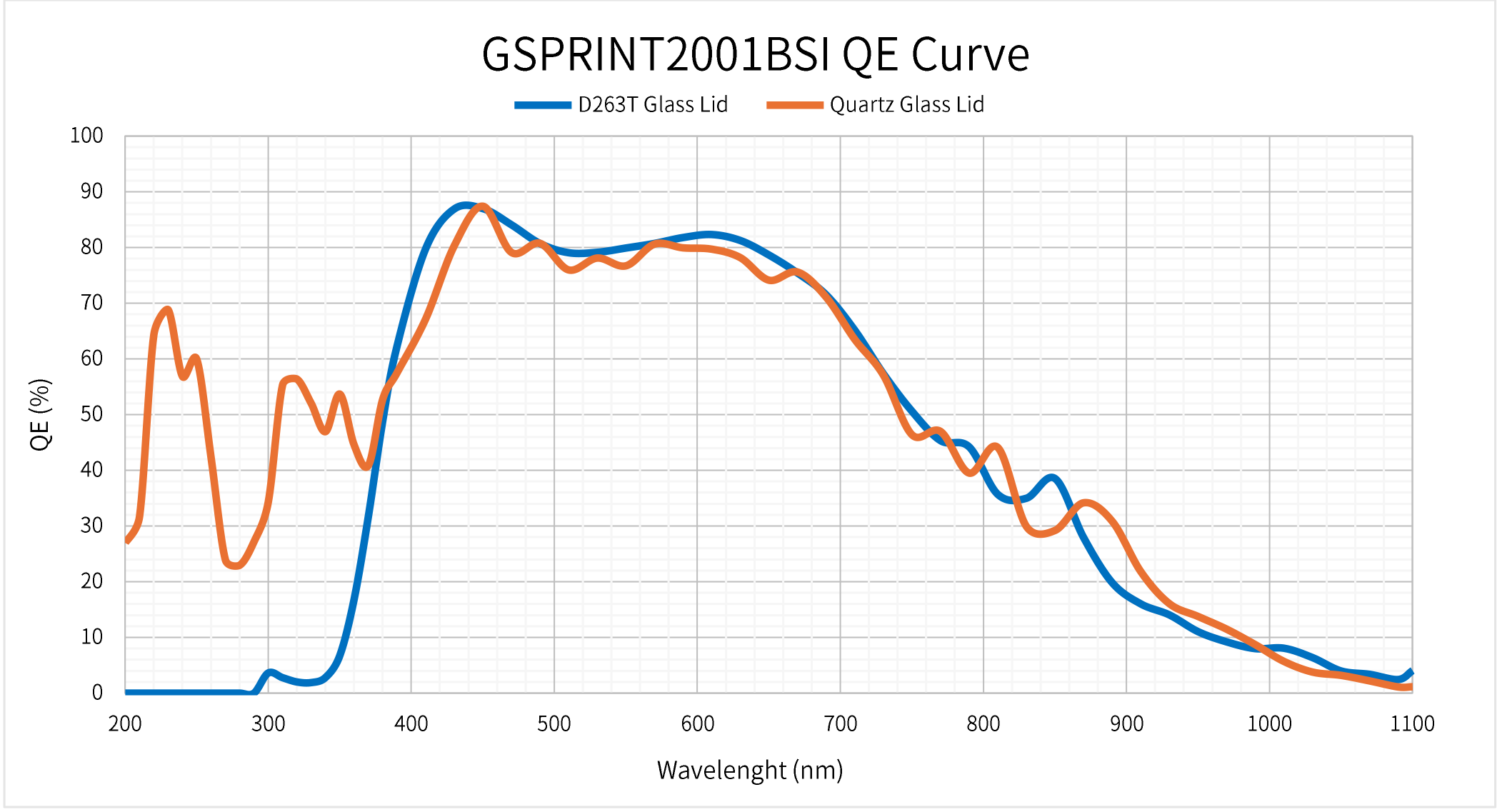

Peak QE
87% (440 nm)
Full Well Capacity
12 ke‾
Temporal Noise
19 e⁻
Max. SNR
40.8 dB
Dynamic Range
56 dB
ADC
10 bit
Max Frame Rate
6400 fps
Channel Multiplexing
64/32/16
Output Format
Sub-LVDS
Max. Data Rate
89.6 Gbps
Chroma
Monochrome & CFA
Power Consumption
7.5 W
Supply Voltage
3.3 V (Analog) 1.8 V (I/O) 1.25 V (Digital)

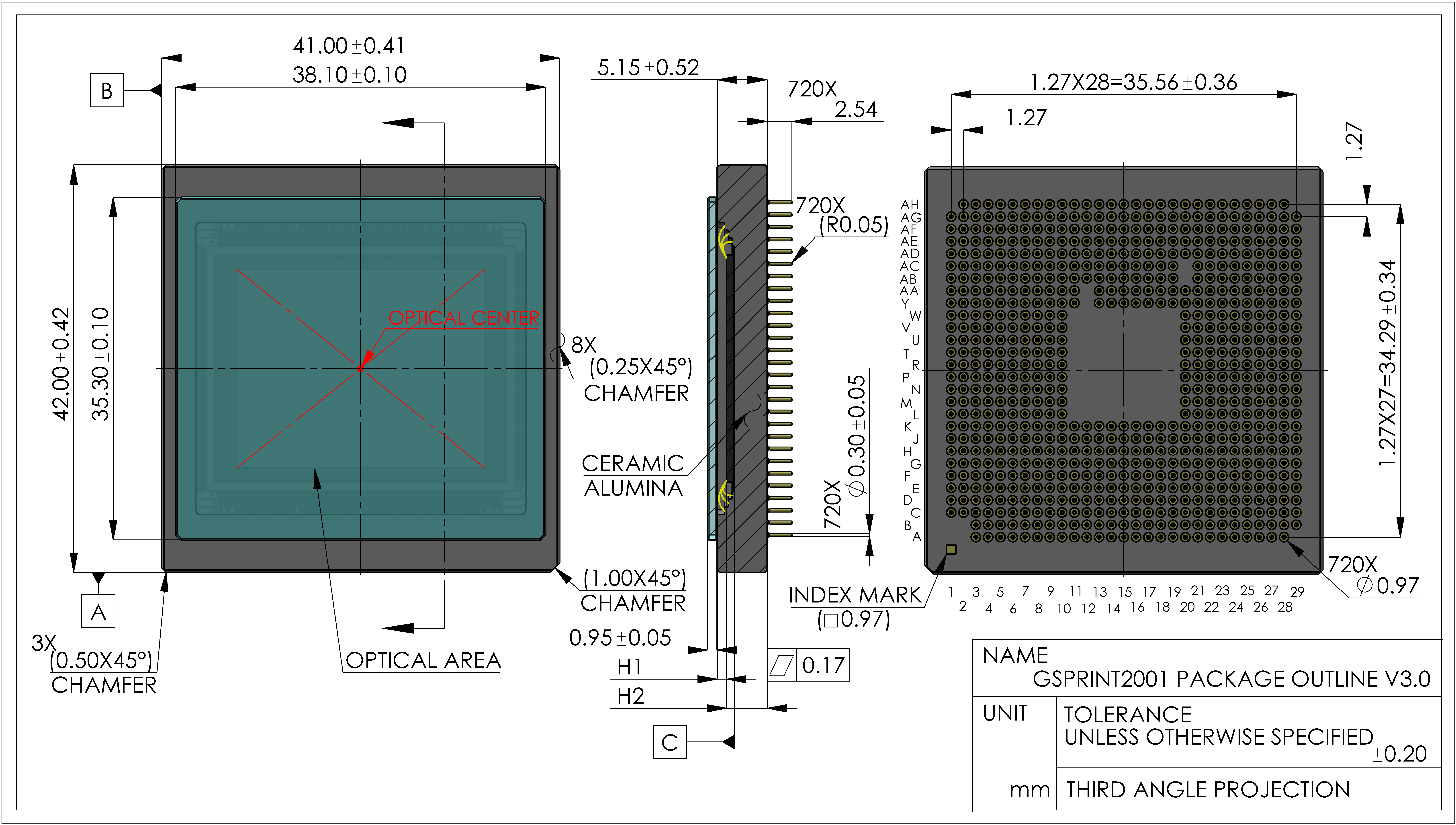

Package
720 pins uPGA (41 mm x 42 mm)
