GLR1402BSI-M
2048 pixels, 14 μm x 350 μm RESOLUTION LINE SCAN CMOS IMAGE SENSOR
GLR1402BSI-M is a single-line linear sensor image sensor with rectangular pixels designed for spectroscopy, OCT, encoder and various other image reading applications. GLR1402BSI-M has 2048 pixels in 1 row, with a pixel size of 14 μm x 350 μm, yielding an impressive max. 180 ke‾ full well capacity and boasting a mere 1.4 e‾ of noise. Data is read out at 14 bits per pixel with 80 dB of dynamic range, or by combining two 12 bit pixel reads, high and low gain, to achieve a maximum dynamic range of 94 dB. GLR1402BSI-M supports both sLVDS and CMOS data outputs, customer can switch different data channels with 12 bit / 14 bit based on demand.
  • Key Features and Benefits

    Back Side Illuminated (BSI) Pixels

    High Sensitivity

    High Speed: up to 29 kHz

    Dual Gain HDR

    UV Version QE 70.4% (280 nm)

    On-chip 14 bit ADC

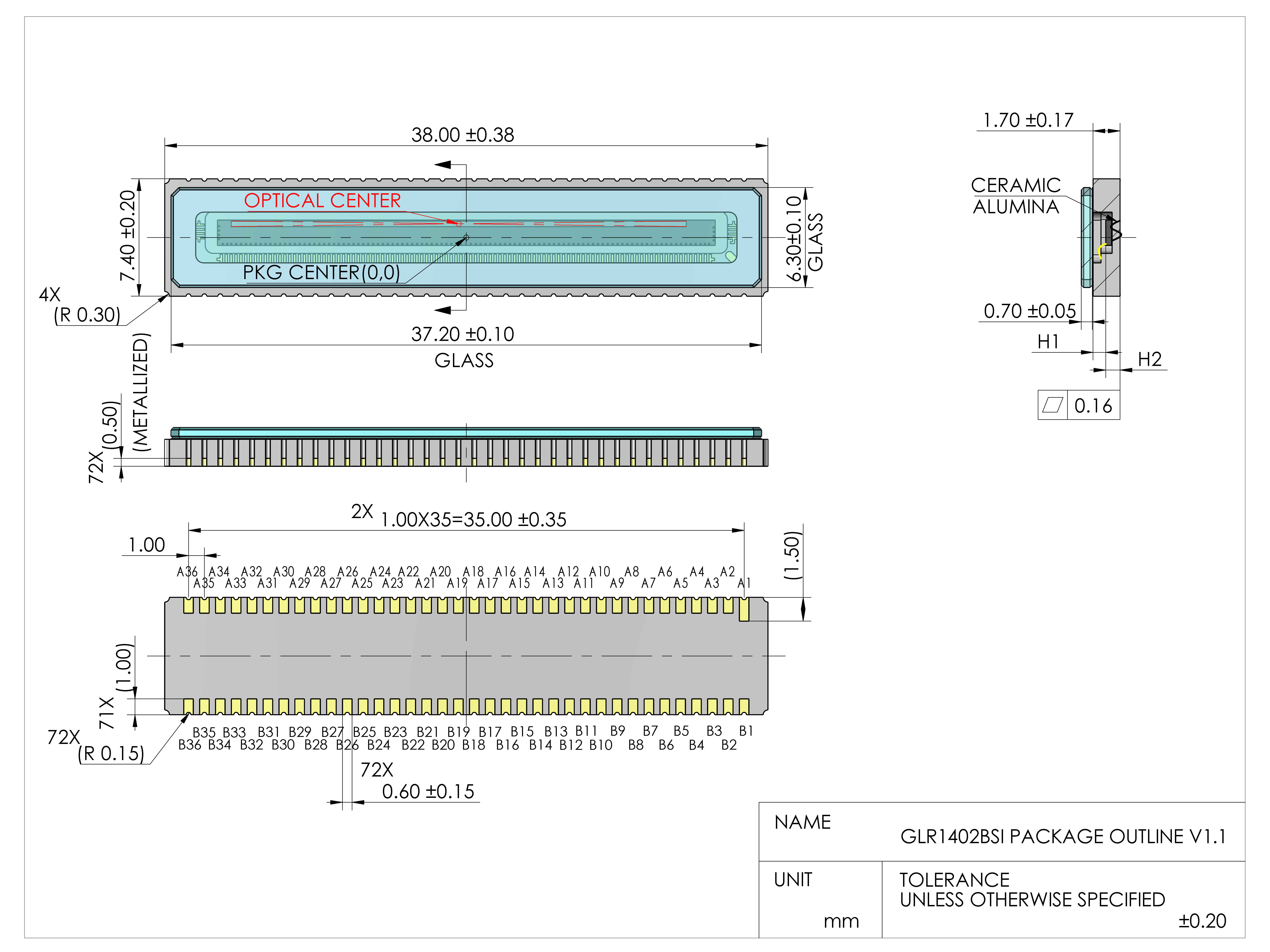

  • Package Drawing

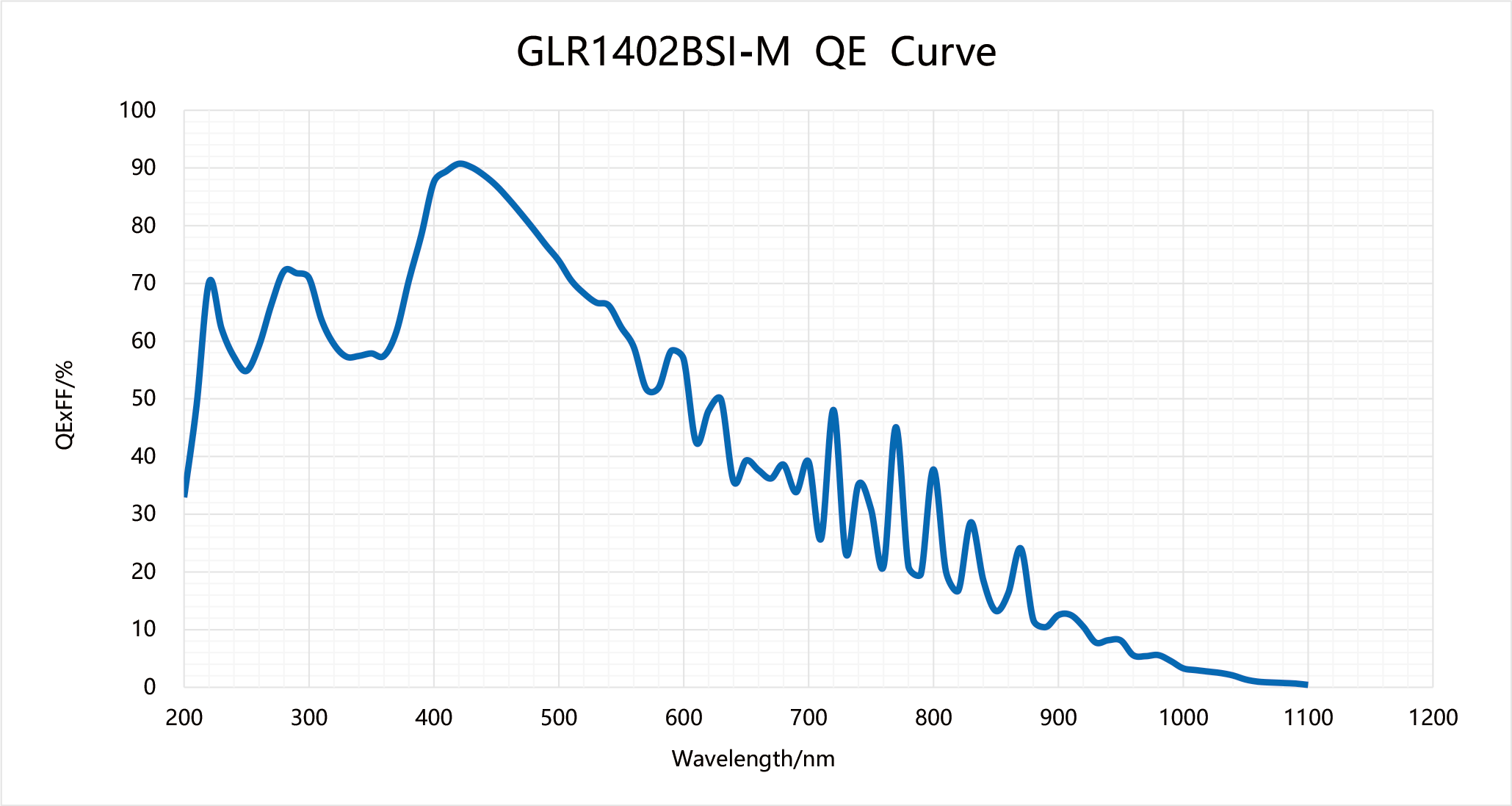

  • QE
GLR1402BSI-M
GLR1402BSI-M
Specifications

  • Resolution

    2 K

    Nr of Active Pixels

    2048 (H) x 1 (V)

  • Optical Format

    28.672 mm

    Pixel Size

    14 μm x 350 μm

  • Full Well Capacity

    180 ke‾ (12 bit HDR LG)

    Temporal Noise

    1.4 e‾ (14 bit HG)

  • Max Line Rate

    29 kHz

    Peak QE

    85% (420 nm)

  • Shutter Type

    Global

    Dynamic Range

    94.6 dB

  • Photosensive Area

    28.672 mm x 0.35 mm

    Dark Current

    T.B.D

  • Max. SNR

    52 dB

    ADC

    12/14 bit

  • Output Format

    4 ch Sub-LVDS CMOS parallel output

    Channel Multiplexing

    Sub-LVDS 4/2/1

  • Max. Data Rate

    2.4 Gbps (Sub-LVDS) 600 Mbps (CMOS)

    Chroma

    Mono

  • Power Consumption

    350 mW

    Supply Voltage

    3.6 V (Analog) 1.5 V (Digital) 1.8 - 3.3 V (IO)

  • Package

    CLCC 72 pins with quartz glass lid (38.0 mm x 7.4 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GLR1402BSI-AUM-NCN-PUE
    72 pins CLCC package. Sealed quartz glass lid without AR coating on both sides, ES
