GMAX Series
GMAX is Gpixel’s global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 2.5 µm to 4.6 µm and resolutions from 2.4 MP to 152 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.
Global Shutter
1/1.7"-Medium
2.4MP-152MP
High Speed
GMAX32103
103 MP 3.2 μm 2.9"GLOBAL SHUTTER IMAGE SENSOR
The 103MP GMAX32103 is a medium sized ultral high resolution image sensor using advanced processing technology the 3.2 μm global shutter pixel achieves 66.9% peak QE @ 500nm, excellent angular response, and a parasitic light sensitivity -83.9 dB. The sensor supports 12bit operation for a maximum full-resolution frame rate of 24 fps. Channel multiplexing of the 52 pairs of sub-LVDS channels allows for optimization between speed and dynamic range to suit the application. The sensor is available in both monochrome and Bayer versions to support use in a variety of applications including machine vision, QA inspection, surveillance, biometrics, document imaging and flat panel inspection.
  • Key features and Benefits

    High resolution in compact optical format

    High data throughput

    Low noise global shutter

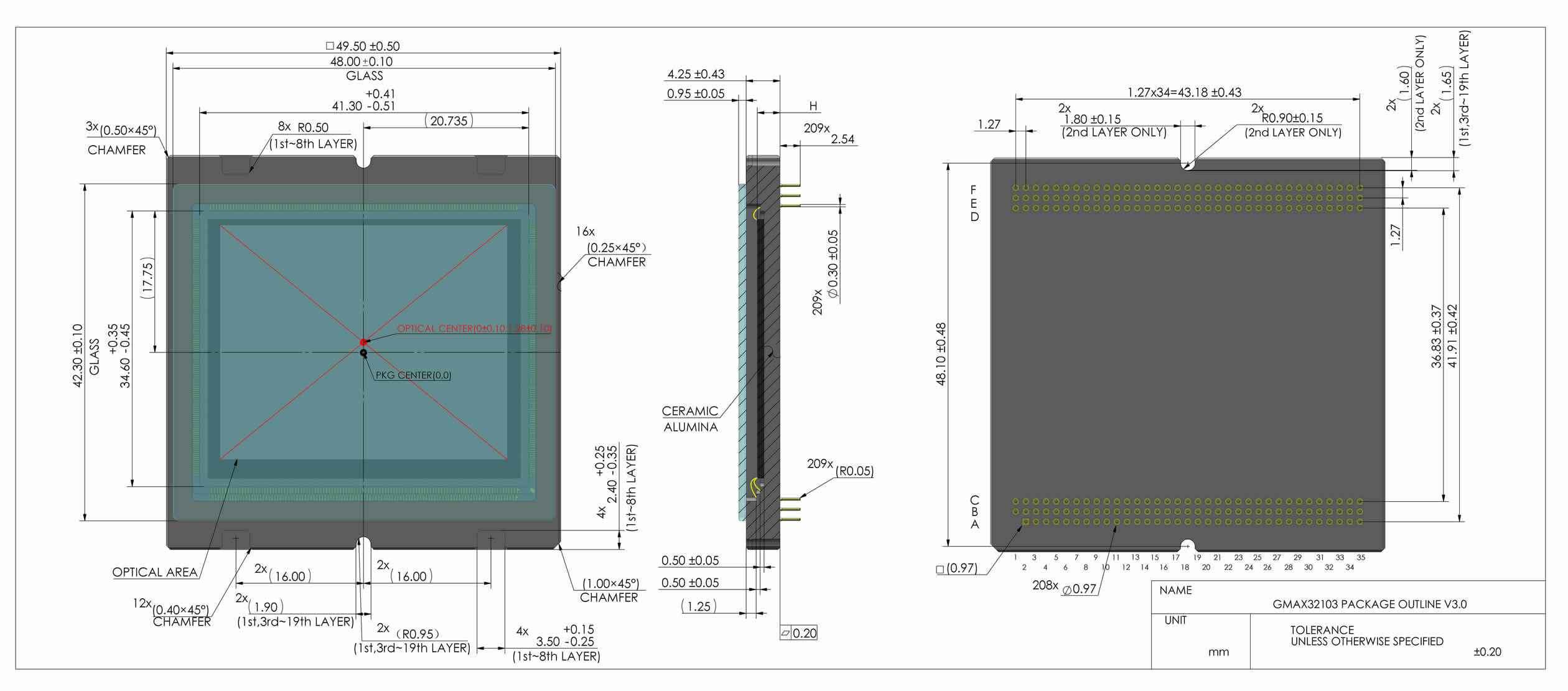

  • Package Drawing
  • Block Diagram

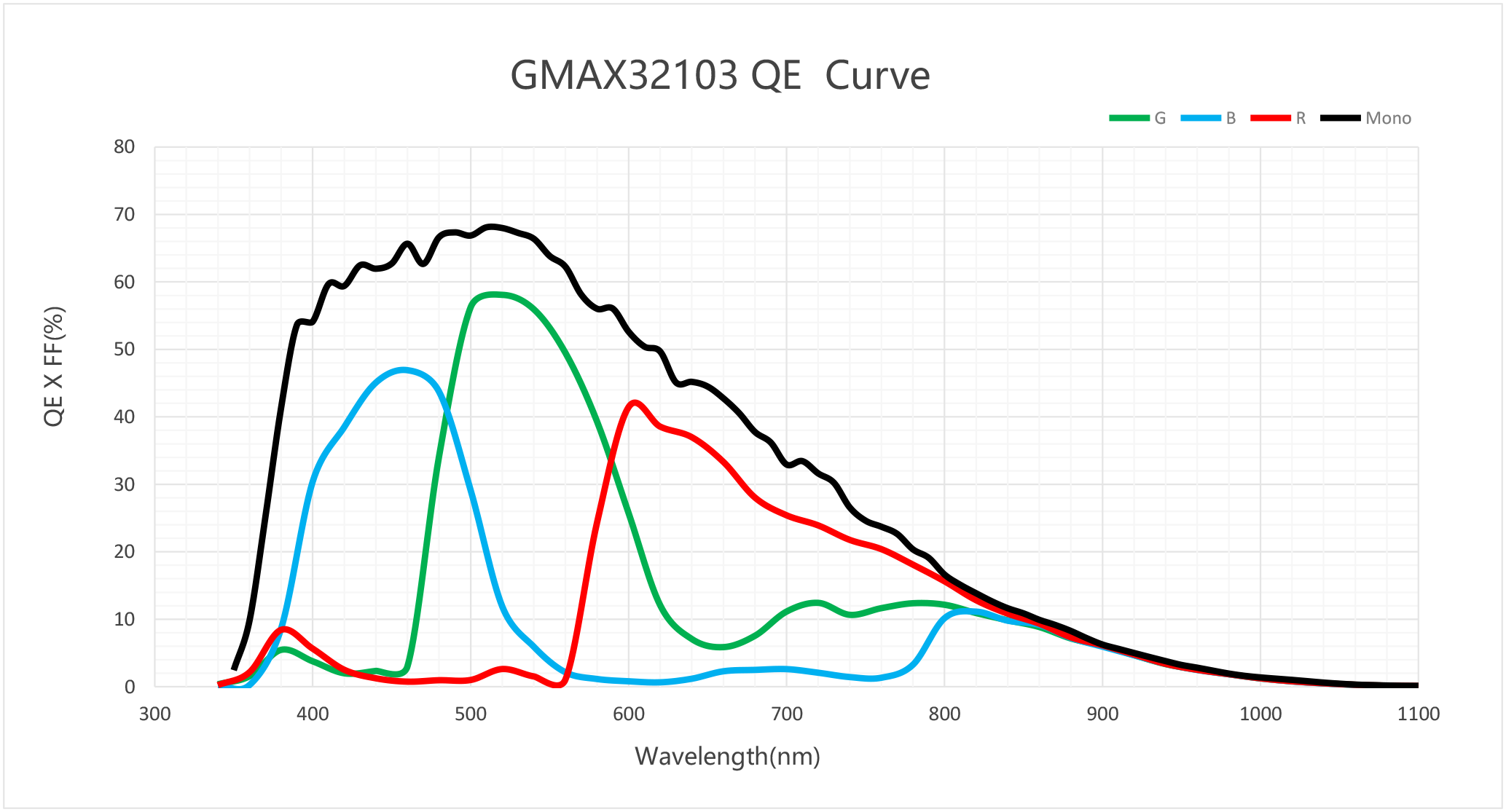

  • QE Curve
GMAX32103
GMAX32103
Specifications
  • Resolution

    103.7 MP

    Nr of Active Pixels

    11276 (H) x 9200 (V)

  • Optical format

    2.9″

    Pixel size

    3.2 μm x 3.2 μm

  • photosensitive area

    36.1 mm x 29.4 mm

    Shutter type

    Global shutter

  • Peak QE

    67% @ 500 nm

    Full well capacity

    9.0 ke‾

  • Parasitic Light Sensitivity

    -83.5 dB

    Temporal noise

    4.3 e‾

  • Angular response

    > 15 (80% response)

    Dark Current

    1.4 e‾/pixel/s @30℃

  • Max. SNR

    39.5 dB

    Dynamic Range

    66.4 dB

  • Max Frame rate

    24 fps @12 bit

    ADC

    12 bit

  • Output format

    52 ch sub-LVDS

    Channel multiplexing

    52/26/18/14/10/8/6

  • Max. Data rate

    49.92 Gbps

    Chroma

    Mono, RGB Color

  • Power consumption

    <2.5 W

    Supply voltage

    3.3V/1.3V (analog), 1.8V – 3.3V (IO), 1.2V (digital)

  • Package

    209 pins uPGA (49.5 mm x 42.3 mm)

    Availability

    Mass Production (MP)

Product Number
  • GMAX32103-BVM-NUT-BU1
    Monochrome, with microlens, ceramic 209 pins μPGA, Sealed D 263® T eco glass with AR coating. 24fps @ 12bit 52 x LVDS, Grade 1
  • GMAX32103-BVM-NUT-BU3
    Monochrome, with microlens, ceramic 209 pins μPGA, Sealed D 263® T eco glass with AR coating. 24fps @ 12bit 52 x LVDS, Grade 3
  • GMAX32103-BVC-NUT-BU2
    Color, with microlens, ceramic 209 pins μPGA, Sealed D 263® T eco glass with AR coating. 24fps @ 12bit 52 x LVDS, Grade 2
  • GMAX32103-BVM-NUT-BU2
    Monochrome, with microlens, ceramic 209 pins μPGA, Sealed D 263® T eco glass with AR coating. 24fps @ 12bit 52 x LVDS, Grade 2
  • GMAX32103-BVC-NUT-BU1
    Color, with microlens, ceramic 209 pins μPGA, Sealed D 263® T eco glass with AR coating. 24fps @ 12bit 52 x LVDS, Grade 1
  • GMAX32103-BVC-NUT-BU3
    Color, with microlens, ceramic 209 pins μPGA, Sealed D 263® T eco glass with AR coating. 24fps @ 12bit 52 x LVDS, Grade 3
  • EVA-32103-NT12
    Evaluation board Operation mode: 12 bit mode Lens holder: T-mount Interface: USB 3.0
