GTOF Series
The GTOF family is a new Gpixel iToF image sensor product range featuring pixel-level stacked BSI technology, targeting high accuracy depth sensing and distance measurement applications.
Contact us
Stacked BSI
High Measuring Accuracy
High Sensitivity
Dual Frequency Mode

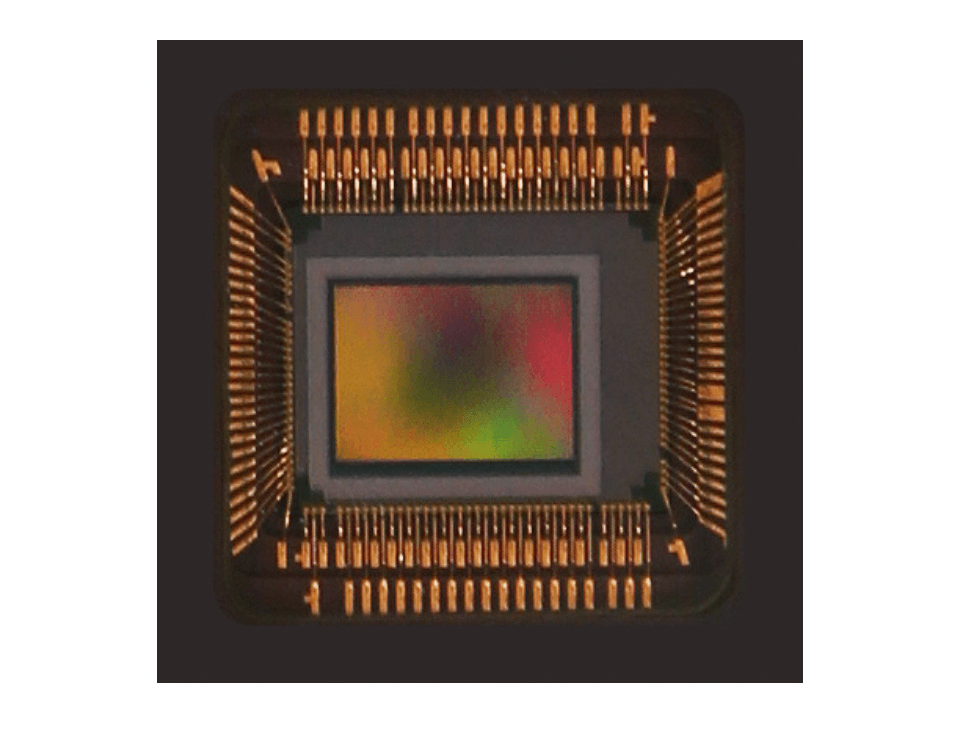

GTOF0503
VGA 1/4'' iTOF CMOS IMAGE SENSOR
GTOF0503 is a VGA sensor featuring a 5 μm 3-tap state-of-the-art iTof pixel incorporating a pixel array with a resolution of 640 x 480 pixels. The BSI technology provides excellent sensitivity at NIR wavelengths. In addition, the wafer stacking enables very high modulation frequencies of up to up to 3 ns pulse width and 30 depth frames per second which results in industry-leading depth accuracy at short, mid and long-range distances even in challenging ambient light conditions by using pulse modulation iToF technique. Advanced features such as multiple acquisition modes, depth with single and dual-frequency, low-power standby modes and an industry standard MIPI CSI-2 interface, allow very versatile and flexible operation.
  • Key Features and Benefits

    Machine Vision

    Automated Guided Vehicle

    Industrial Automation

    Bin Picking

    Logistics

    Smart Factory
  • Package drawing
GTOF0503
GTOF0503
Specifications

  • Resolution

    0.3 MP

    Nr of Active Pixels

    640 (H) x 480 (V)

  • Optical Format

    1/4"

    Pixel Size

    5 μm x 5 μm

  • Photosensitive Area

    3.2 mm x 2.4 mm

    Shutter Type

    Global Shutter

  • Peak QE

    > 20% (940 nm)

    Full Well Capacity

    9 ke‾

  • Temporal Noise

    8.2 e‾

    Dynamic Range

    60.8 dB

  • Max Frame Rate

    60 fps

    Max. SNR

    40 dB

  • ADC

    11 bit

    Channel Multiplexing

    -

  • Output Format

    4 ch CSI-2 MIPI

    Chroma

    Mono

  • Power Consumption

    330 mW

    Supply Voltage

    2.8 V , 1.8 V 1.2 V , 1.3 V

  • Package

    139 pads (Die) 69 pins LGA (9.2 mm x 9.2 mm)

    Availability

    Engineering Samples (ES)

Product Number
  • GTOF0503-CNM-NLT-BUD
    Monochrome, with ulens, sealed D 263® T eco glass with ARC, 69 pins LGA; 60 fps (Single frequency mode) ,30 fps (dual frequency mode).
  • GTOF0503-CM Tested Die
    150 um thickness Die, Monochrome, with ulens. 60 fps (Single frequency mode) ,30 fps (dual frequency mode).
