Resolution

4 K

Nr of Active Pixels

4096 (H) x 2 (V)

Optical Format

28.67 mm

Pixel Size

7 μm x 7 μm

Full Well Capacity

25.0 ke‾ (low gain) 10.0 ke‾ (high gain)

Temporal Noise

5.2 e‾

Dynamic Range

65.6 dB (high gain)

Max Line Rate

200k fps (single line) 100k fps (dual line)

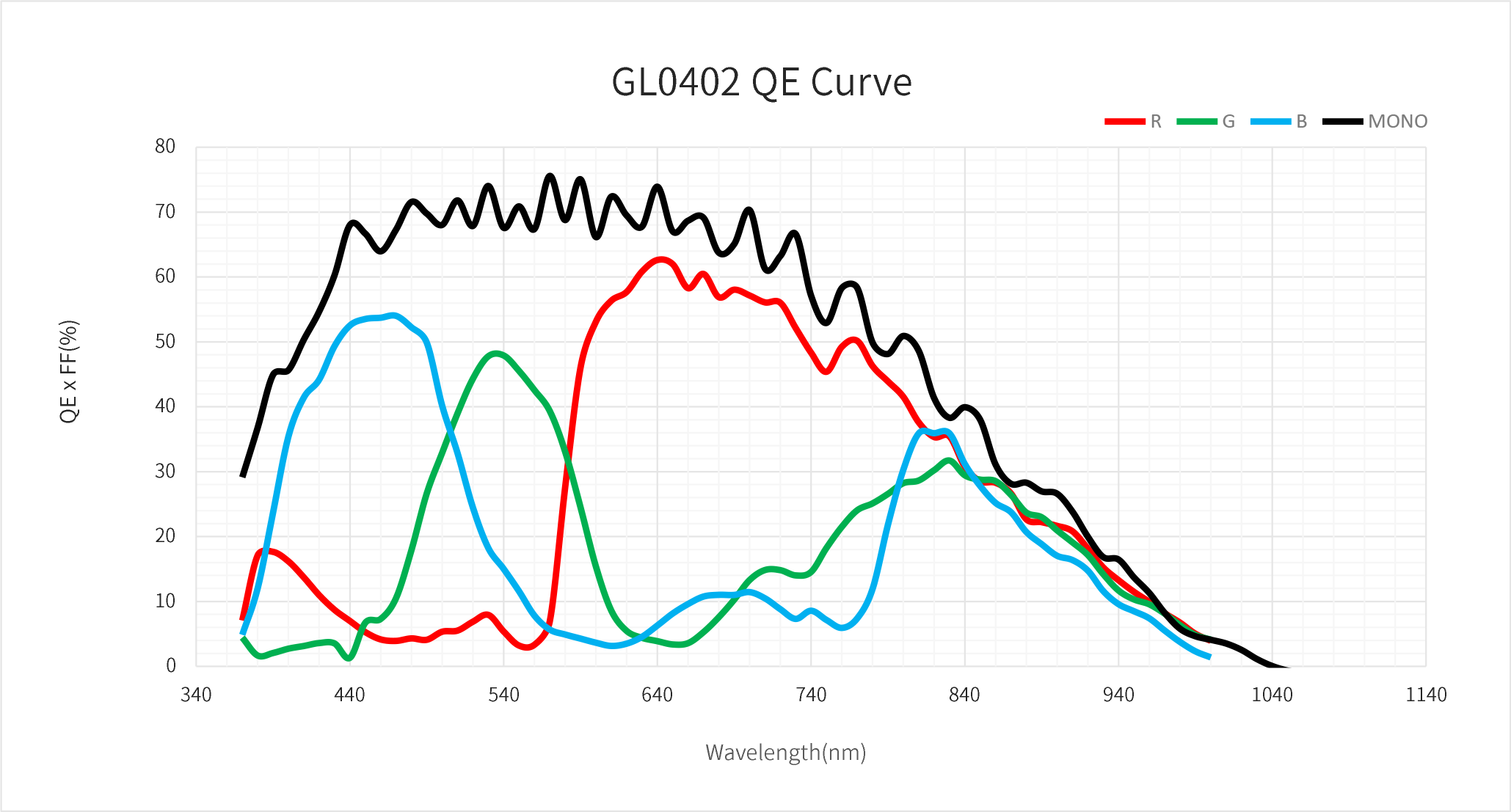

Peak QE

75.57% (570 nm)

Shutter Type

Global Shutter

Angular Response

20° (85% response)

Photosensive Area

28.67 mm

Parasitic Light Sensitivity

-

Dark Current

10 ke‾/pixel/sec (70℃)

Max. SNR

43.9 dB

ADC

12 bit

Output Format

12 ch Sub-LVDS

Channel Multiplexing

12/6

Max. Data Rate

10.944 Gbps

Chroma

Mono, RGB Color

Power Consumption

< 2.25 W

Supply Voltage

3.3 V (analog) 2 V (digital) 1.8 V - 3.3 V (I/O)

Package

CLCC 76 pins (40.0 mm x 11.0 mm)

Availability

Mass Production (MP)
