Resolution

2.0 K

Nr of Active Pixels

2048 (H) x 1 (V) 2048 (H) x 3 (V)

Optical Format

28.896 mm

Pixel Size

14 μm x 14 μm

Full Well Capacity

28.7 ke‾

Temporal Noise

9.1 e‾

Max Line Rate

81 kHz (single line)

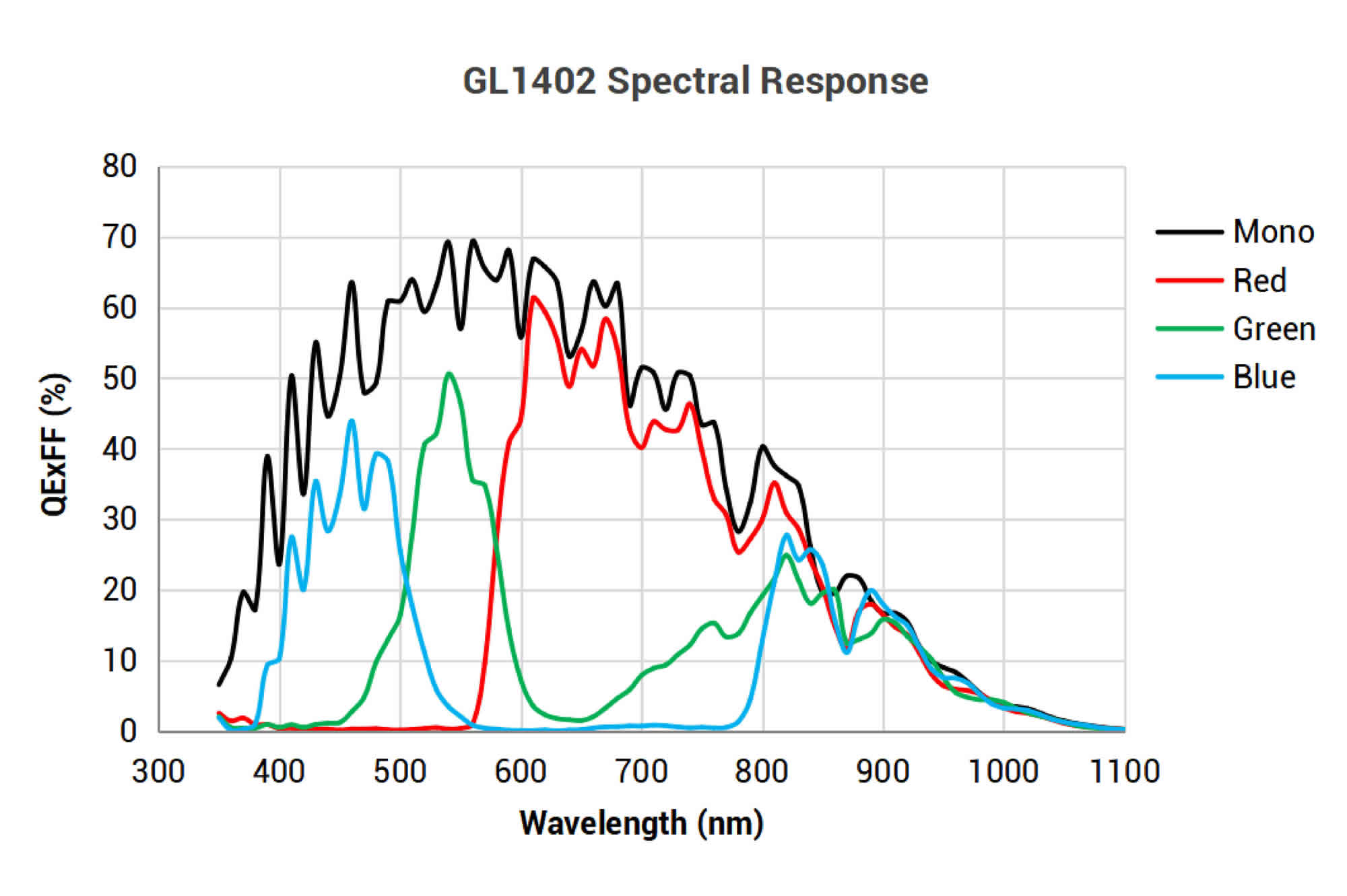

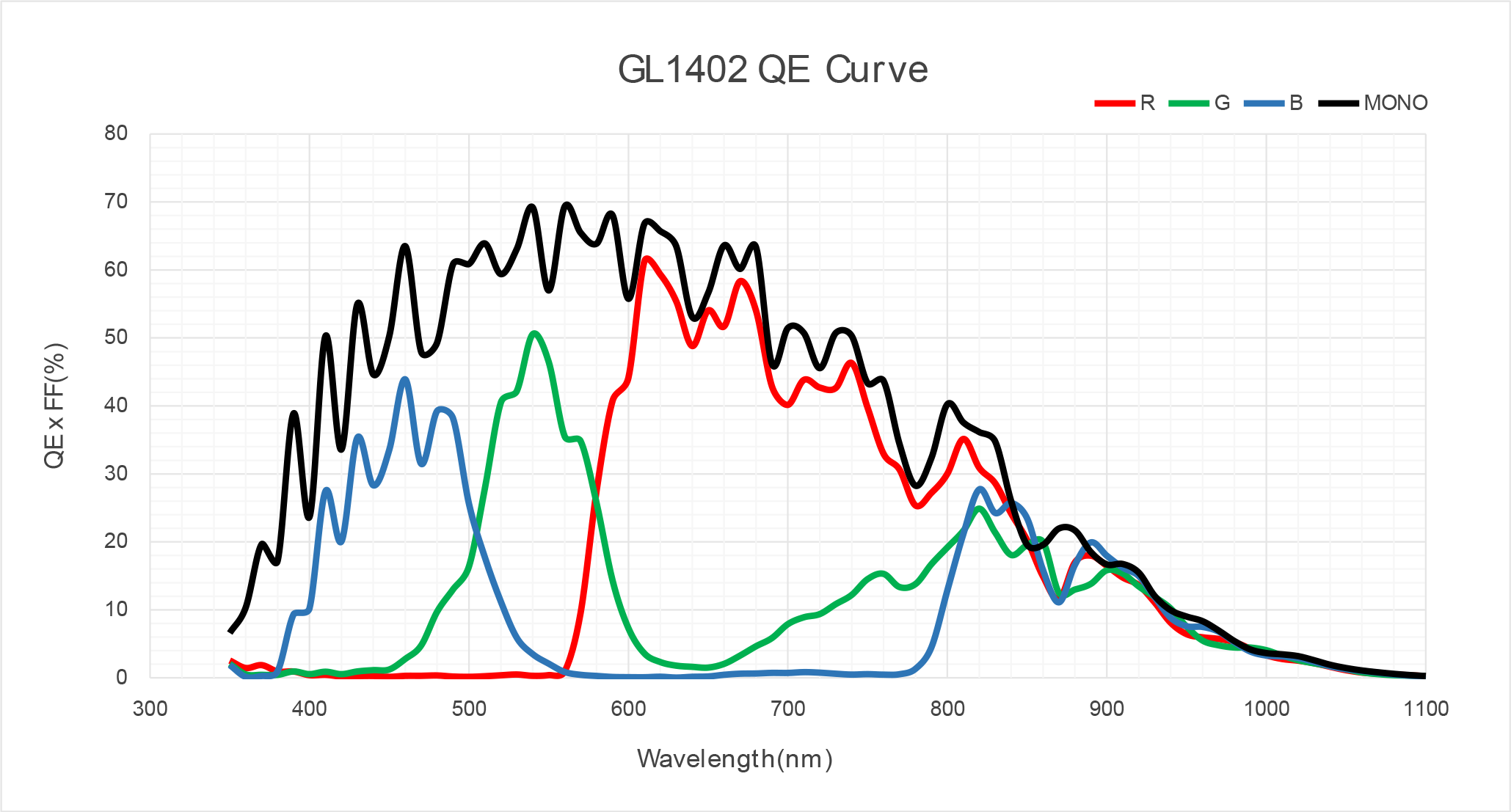

Peak QE

69.3% (560 nm)

Shutter Type

Global Shutter

Angular Response

20° (85% response)

Dynamic Range

69.9 dB

Photosensive Area

28.896 mm

Parasitic Light Sensitivity

-

Dark Current

2000 e‾/pixel/s (40℃)

Max. SNR

44.5 dB

ADC

12 bit

Output Format

4 ch Sub-LVDS

Channel Multiplexing

4/2/1

Max. Data Rate

2.08 Gbps

Chroma

Mono, RGB color

Power Consumption

< 0.42 W

Supply Voltage

3.6 V (analog) 1.8 V - 3.3 V (IO) 1.5 V (digital)

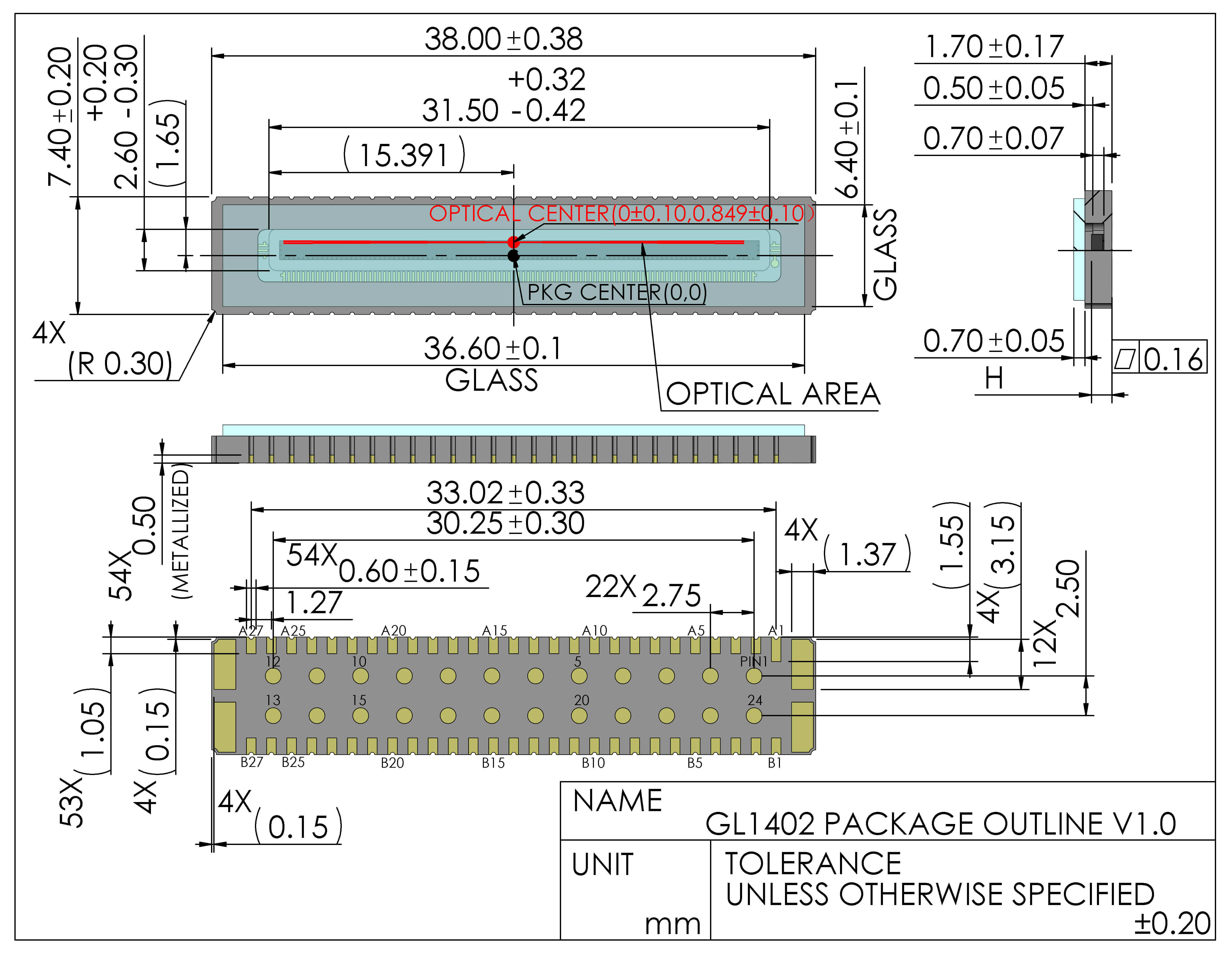

Package

54 pins CLCC (38.0 mm x 7.4 mm)

Availability

Engineering Samples (ES)
