GSPRINT系列
The GSPRINT series is Gpixel’s high-speed global shutter product family, including the 21 MP GSPRINT4521. The GSPRINT technology will be used to expand the sizes and resolutions available in the family over the next year.
立即咨询
Global Shutter
High Speed
2 MP - 21 MP
Low Noise
GSPRINT4502
2 MP 4.5 μm 2/3" GLOBAL SHUTTER HIGH SPEED IMAGE SENSOR
GSPRINT4502 is a 2 MP (2048 x 1216) 2/3 sized (10.7 mm) high speed, global shutter image sensor designed with the latest 4.5 μm charge domain global shutter pixel. It achieves more than 30k e‾ FWC, less than 4 e‾ rms read noise and > 68 dB dynamic range, optionally to be increased with multi-slope HDR mode. Using an advanced 65 nm CIS process and light pipe technology, the sensor achieves > 65% QE and more than 1/40,000 shutter efficiency. With on-chip charge binning, FWC can be further increased to > 120 ke‾ and frame rate is quadrupled. GSPRINT4502 consists of 64 pairs Sub-LVDS channels running (1.2 Gbps) which delivers a stunning 3300 fps (8 bit) per pixel and full resolution and over 10000 fps with binning mode. These unique features make it an ideal solution for demanding imaging in applications such as 3D laser profiling, industrial inspection, motion analysis and high speed imaging.
  • Key Features and Benefits

    High Frame Rate

    Low Noise Global Shutter

    Vertical ROIs with Speed Boosting

    Programmable Analog and Digital Gain

    External Triggering
  • Package Drawing

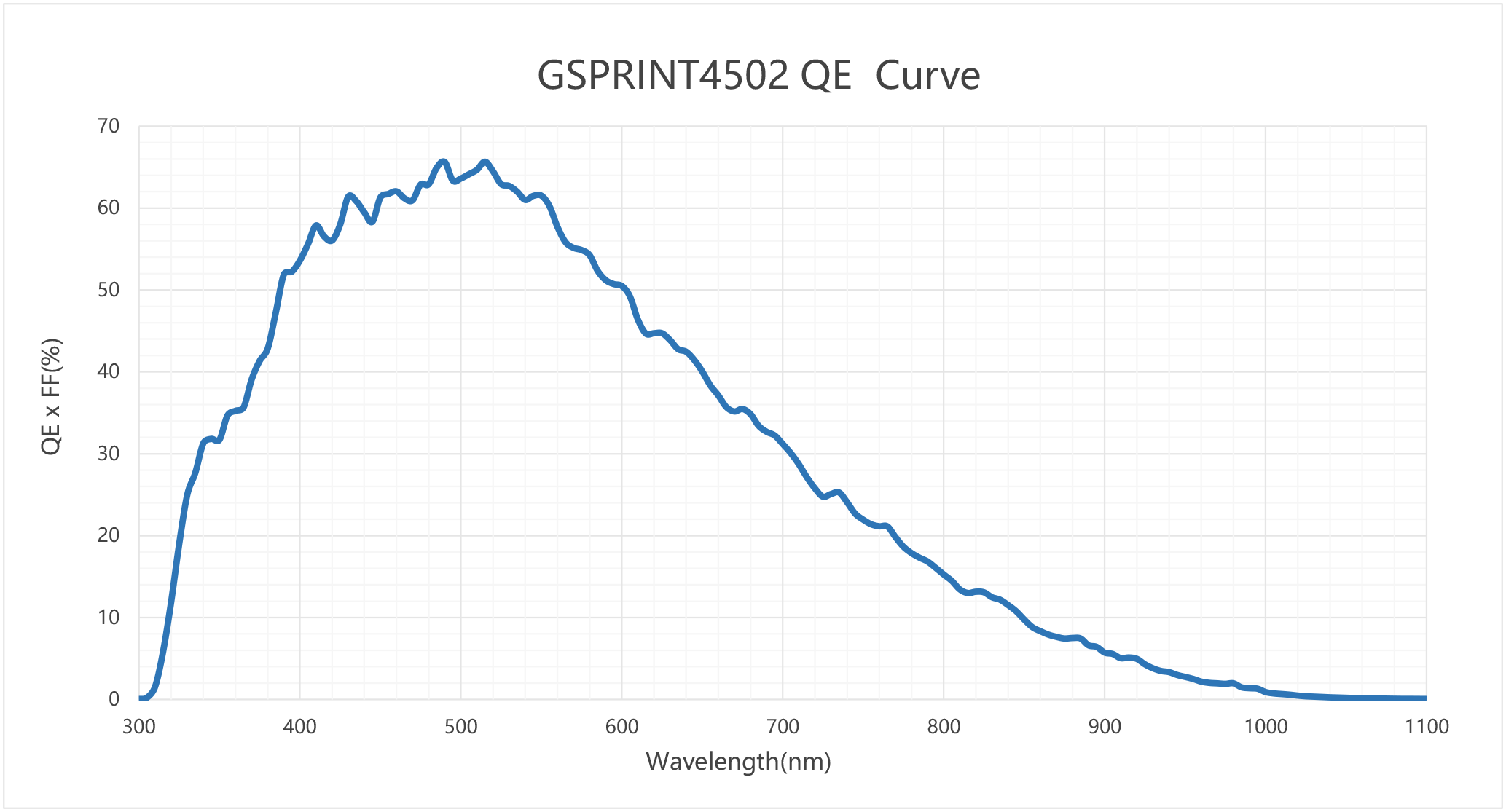

  • QE Curve
GSPRINT4502
GSPRINT4502
产品指标

  • Resolution

    2 MP

    Nr of Active Pixels

    2048 (H) x 1216 (V)

  • Optical Format

    2/3″

    Pixel Size

    4.5 μm x 4.5 μm

  • Photosensitive Area

    9.21 mm x 5.47 mm

    Shutter Type

    Global Shutter

  • Peak QE

    65.7% (515 nm)

    Full Well Capacity

    > 30 ke‾

  • Parasitic Light Sensitivity

    - 84.6 dB

    Temporal Noise

    3.8 e‾

  • Angular Response

    20°(80% response)

    Dark Current

    21 e‾/pixel/s (60℃)

  • Max. SNR

    44.8 dB

    Dynamic Range

    68.2 dB (12 bit)

  • Max Frame Rate

    3462 fps (8 bit) 1782 fps (10 bit) 852 fps (12 bit)

    ADC

    8/10/12 bit

  • Output Format

    64 ch Sub-LVDS

    Channel Multiplexing

    160/156/152/…/4 (any multiple of 4)

  • Max. Data Rate

    76.8 Gbps

    Chroma

    Mono,RGB Color

  • Power Consumption

    2.5 W

    Supply Voltage

    3.3 V (analog) 1.8 V (I/O) 1.2 V (digital)

  • Package

    255 pins μPGA (28.0 mm x 29.4 mm)

    Availability

    Engineering Samples (ES)

产品编码
  • GSPRINT4502-AVM-NUT-AR2
    Monochrome, removable D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),Grade 2
  • GSPRINT4502-AVM-NUT-AU1
    Monochrome, sealed D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),Grade 1
  • GSPRINT4502-AVM-NUT-AUE
    Monochrome, sealed D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),ES
  • GSPRINT4502-AVM-NUT-ARE
    Monochrome, removable D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),ES
  • GSPRINT4502-AVM-NUT-AU2
    Monochrome, sealed D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),Grade 2
  • GSPRINT4502-AVC-NUT-AU1
    CFA, sealed D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),Grade 1
  • GSPRINT4502-AVC-NUT-AU2
    CFA, sealed D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),Grade 2
  • GSPRINT4502-AVC-NUT-AUE
    CFA, sealed D 263® T eco 0.7 mm glass without ARC, 255 pins µPGA, 3462 fps (8 bit 64 channels), 1782 fps (10 bit 44 channels), 852 fps (12 bit 24 channels),ES
