3.2 μm Global Shutter Pixel
High Resolution up to 103 MP
High Data Throughput up to 960 Mbps
On Chip Sequencer and SPI Control
High Speed and Good PLS
Resolution
103 MP
Nr of Active Pixels
11276 (H) x 9200 (V)
Optical Format
2.9″
Pixel Size
3.2 μm x 3.2 μm
Photosensitive Area
36.1 mm x 29.4 mm
Shutter Type
Global Shutter

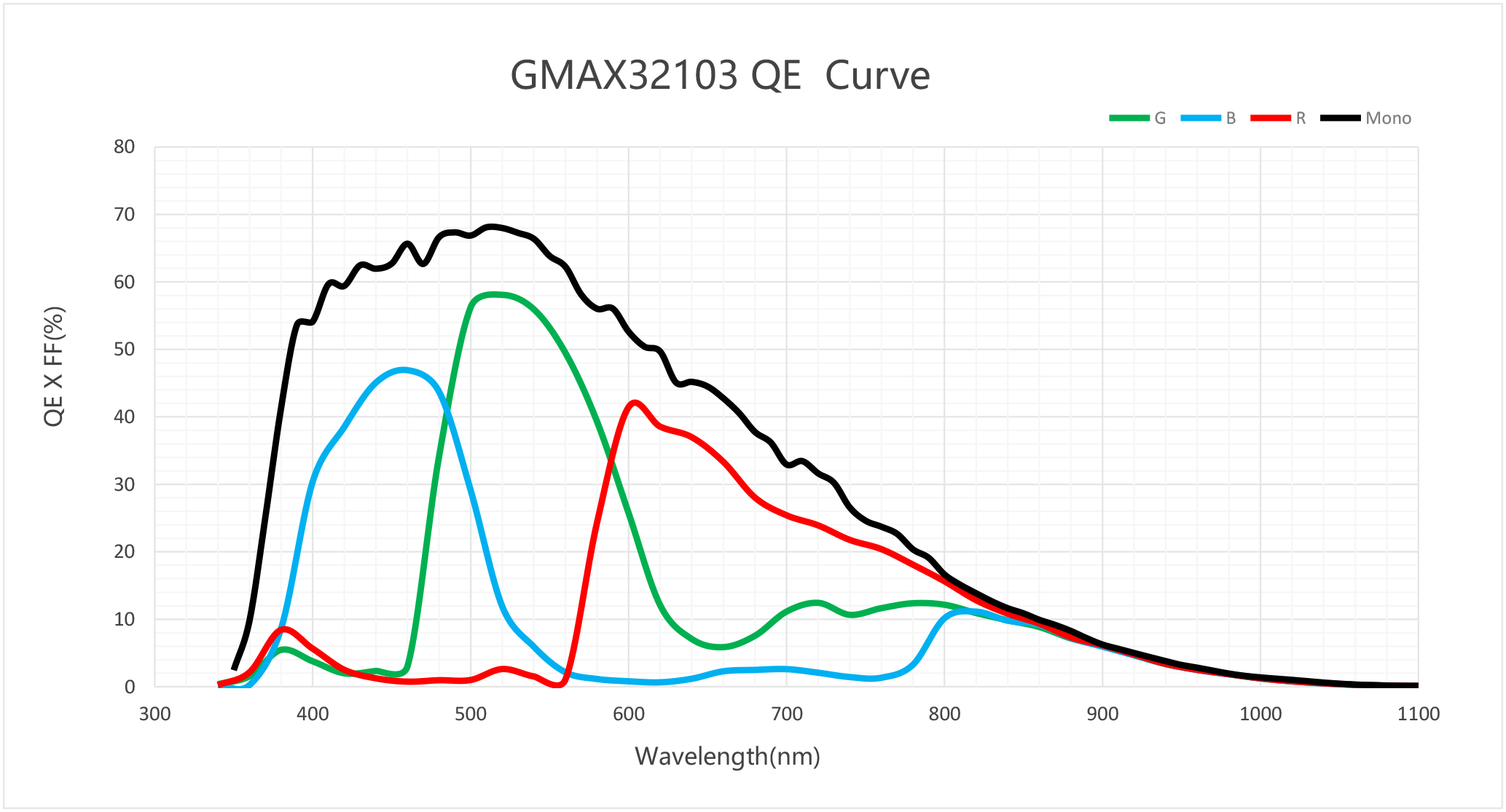

Peak QE
66.9% (500 nm)
Full Well Capacity
9 ke⁻ (PGA gain 1.4x)
Parasitic Light Sensitivity
< -83.5 dB
Temporal Noise
4.3 e‾ (PGA Gain 1.4x)
Angular Response
> 15⁰ (80% response)
Dark Current
1.4 e⁻/pixel/s (30 ℃)
Max. SNR
39.5 dB
Dynamic Range
66.4 dB
Max Frame Rate
24 fps
ADC
12 bit
Output Format
52 ch Sub-LVDS
Channel Multiplexing
52/26/18/14/10/8/6
Max. Data Rate
49.92 Gbps
Chroma
Mono, RGB Color
Power Consumption
< 2.5 W
Supply Voltage
3.3 V/1.3 V (analog) 1.8 V – 3.3 V (IO) 1.2 V (digital)
Package
209 pins uPGA (49.5 mm x 42.3 mm)
Availability
Mass Production (MP)
