GMAX系列

GMAX is Gpixel's global shutter sensor family, designed to take full advantage of high-speed industrial camera interfaces while providing the performance and features required for imaging-as-measurement applications like factory inspection, automation, traffic monitoring and aerial mapping. In the GMAX portfolio, Gpixel offers global shutter pixel sizes ranging from 1.5 µm to 6.4 µm and resolutions from 2.4 MP to 271 MP. Four C-Mount compatible sensors utilizing a 2.5 µm pixel are pin and footprint compatible for easy integration.

立即咨询

Global Shutter

1/1.7″-Medium

2.4 MP-271 MP

High Speed

GMAX2518

18 MP 2.5 μm 1" GLOBAL SHUTTER IMAGE SENSOR

GMAX2518 has an optical format of 1" and features 18 Mega Pixel (4508 × 4096) Global Shutter pixels based on the proven GMAX 2.5 μm architecture, operating with true correlated double sampling (CDS) for low read noise and high dynamic range. In addition, the dual light pipe technology provides excellent PLS and angular response, with 32 pairs of sub-LVDS each run at 960 MHz, the sensor output with maximum 30.72 Gbps data, achieving maximum frame rate of 150 fps in 10 bit output and 64 fps in 12 bit output.
The sensor integrates an on-chip sequencer, programmable through SPI, and is designed to be fully pin compatible with GMAX0505, GMAX2509 and GMAX2505 to significantly shorten time to market for camera manufactures. GMAX2518 will be assembled in a 19.5 x 20.8 mm 226-pins LGA ceramic package, which is mechanically compatible to fit into an industry standard 29 mm x 29 mm camera housing.

Key Features and Benefits

2.5 μm Global Shutter Pixel

> 64% Peak QE, < -80 dB Shutter Efficiency

High Data Throughput up to 30.72 Gbps

High Speed and Good PLS

Max Frame Rate: 139 fps

Mechanically Compatible with Industry Standard Camera
Package Drawing

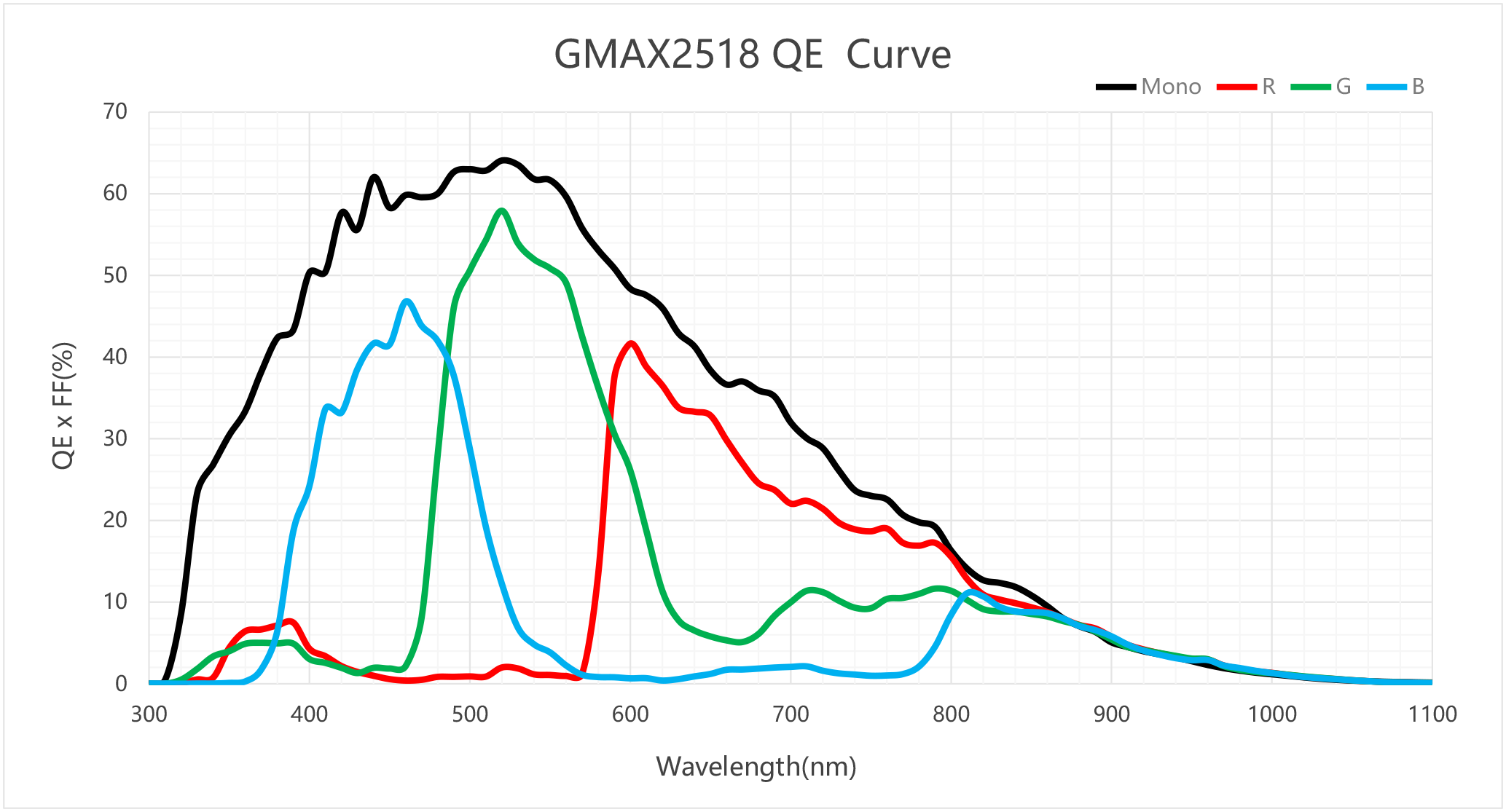

QE Curve

GMAX2518

产品指标

Resolution

18 MP

Nr of Active Pixels

4508 (H) x 4096 (V)
Optical Format

1″

Pixel Size

2.5 μm x 2.5 μm
Photosensitive Area

11.3 mm x 10.2 mm

Shutter Type

Global Shutter
Peak QE

64.0% (520 nm)

Full Well Capacity

8.0 ke⁻ (PGA gain 1.0x)
Parasitic Light Sensitivity

-80 dB

Temporal Noise

1.7 e⁻ (12 bit,PGA gain 4x) 4.7 e⁻ (10 bit,PGA gain 1.75x)
Angular Response

> 12° (80% response)

Dark Current

6.5 e⁻/pixel/s (45 ℃)
Max. SNR

39.0 dB (PGA gain 1.0x)

Dynamic Range

66.9 dB (12 bit,PGA gain 1.75x) 61.9 dB (10 bit,PGA gain 1.75x)
Max Frame Rate

139 fps (10 bit)

ADC

10/12 bit
Output Format

32 ch Sub-LVDS

Channel Multiplexing

32/16/12/8/4/2
Max. Data Rate

30.72 Gbps

Chroma

Mono & RGB Color
Power Consumption

< 1.2 W

Supply Voltage

3.3 V/1.3 V (analog) 1.8 V-3.3 V (IO) 1.3 V (digital)
Package

226 pins LGA (20.8 mm x 19.5 mm)

Availability

Mass Production (MP)

产品编码

GMAX2518-AVM-HLT-AU1

Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T eco glass with no AR coating. High speed version, 139 fps (10 bit, 32 x Sub-LVDS),Grade 1.
GMAX2518-AVM-NLT-AU1

Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T eco glass with no AR coating. Normal speed version, 64 fps (12 bit, 16 x Sub-LVDS),Grade 1.
GMAX2518-AVC-HLT-AU1

Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T eco glass with no AR coating. High speed version, 139 fps (10 bit, 32 x Sub-LVDS),Grade 1.

GMAX2518-AVM-HLT-AU2

Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T eco glass with no AR coating. High speed version, 139 fps (10 bit, 32 x Sub-LVDS),Grade 2.
GMAX2518-AVM-NLT-AU2

Monochrome, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T eco glass with no AR coating. Normal speed version, 64 fps (12 bit, 16 x Sub-LVDS),Grade 2.
GMAX2518-AVC-HLT-AU2

Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T eco glass with no AR coating. High speed version, 139 fps (10 bit, 32 x Sub-LVDS),Grade 2.

GMAX2518-AVC-NLT-AU1

Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T glass with no AR coating. Normal speed version, 64 fps (12 bit, 16 x Sub-LVDS),Grade 1.

GMAX2518-AVC-NLT-AU2

Bayer color, micro-lens, ceramic 226 pins LGA, Sealed D 263^® T glass with no AR coating. Normal speed version, 64 fps (12 bit, 16 x Sub-LVDS),Grade 2.
