GLUX系列
The GLUX series is a backside illuminated, scientific grade CMOS image sensor product family combining sub-electron noise performance with high frame rates for ultra-low light imaging in scientific and surveillance applications.
立即咨询
High Sensitivity
HDR
Low Noise
BSI
GLUX9701BSI
1.3 MP 9.76 μm ROLLING SHUTTER CMOS IMAGE SENSOR
GLUX9701BSI, a 1" sized, high sensitivity BSI sCMOS image sensor with a resolution of 1.3 MP (1280 x 1024) and large 9.76 μm x 9.76 μm pixels. Sensor supports a dual-gain HDR mode, achieving dynamic range of 89.5 dB by combining 1.6 e‾ readout noise. A dedicated low noise mode further optimizes imaging performance with read noise of 0.85 e‾ and power consumption of only 122 mW.
  • Key Features and Benefits

    High Sensitivity

    < 1 e‾ Readout Noise

    High Dynamic Range
  • Package Drawing

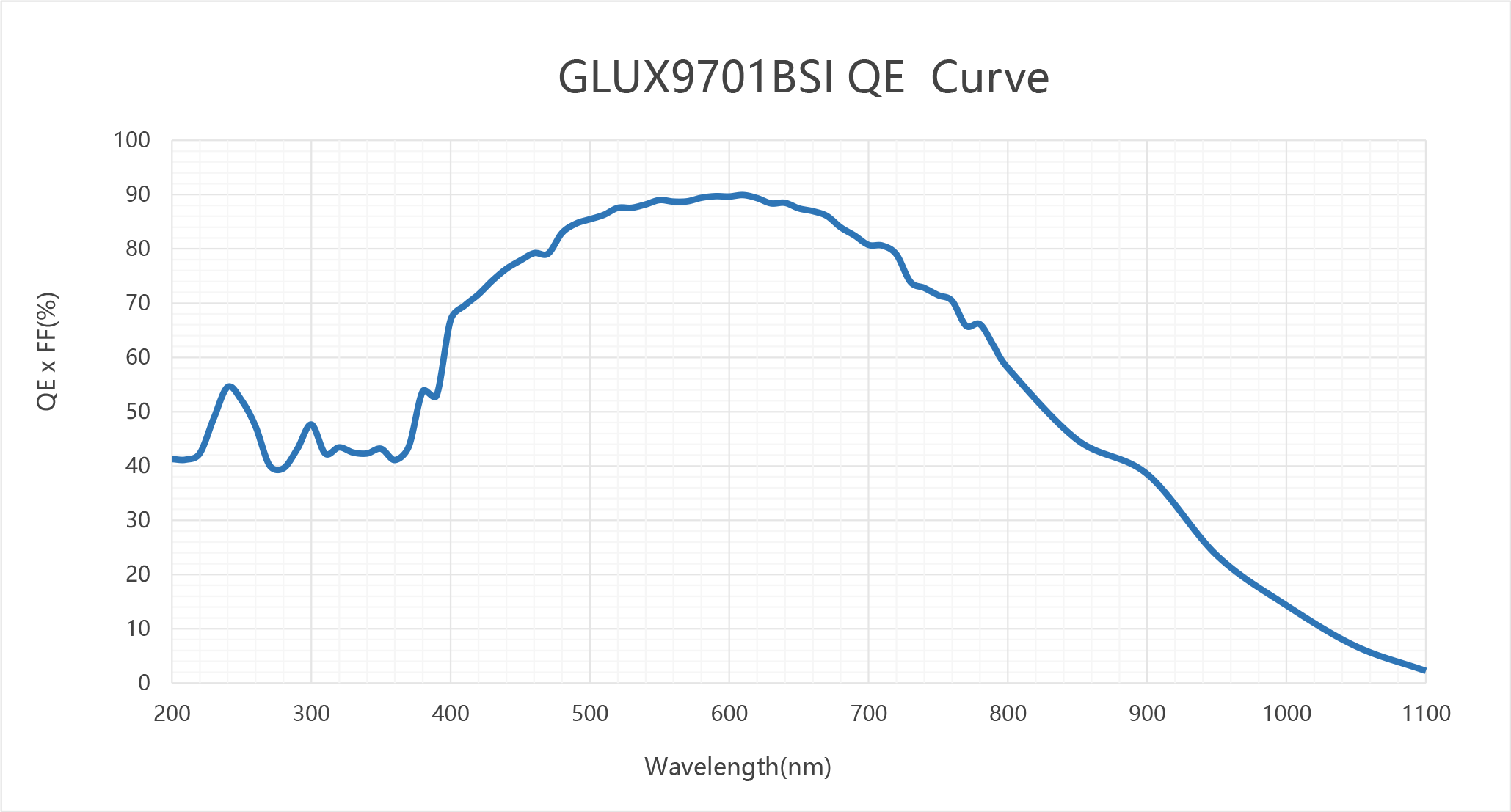

  • QE Curve
GLUX9701BSI
GLUX9701BSI
产品指标

  • Resolution

    1.3 MP

    Nr of Active Pixels

    1280 (H) x 1024 (V)

  • Optical Format

    1″

    Pixel Size

    9.76 μm x 9.76 μm

  • Photosensitive Area

    12.493 mm x 9.994 mm

    Shutter Type

    Rolling Shutter

  • Peak QE

    89% (610 nm)

    Full Well Capacity

    48 ke‾

  • Temporal Noise

    1.6 e‾ (HDR HG) 0.85 e‾ (Low Noise)

    Dynamic Range

    89.5 dB (HDR)

  • Max Frame Rate

    30 fps

    Dark Current

    0.08 e‾/pixel/s (-28°C)

  • Max. SNR

    46.8 dB

    Output Format

    4 ch Sub-LVDS、4 ch MIPI

  • Max. Data Rate

    1.782 Gbps

    Chroma

    Mono

  • Power Consumption

    250 mW (HDR) 122 mW (Low Noise)

    Supply Voltage

    3.3 V (analog)、1.8 V (digital)

  • Package

    84 pins CLCC (22.0 mm x 22.0 mm)

    Availability

    Mass Production (MP)

产品编码
  • GLUX9701BSI-CBM-NCN-AR1
    BSI image sensor, 84 pins CLCC package, Removable D 263® T eco glass lid without AR coating on both sides, Grade 1
  • EVA-G9701BSI-02-1
    Evaluation board 1. HDR and low noise mode 2. C-mount lens hoder 3. USB 3.0
  • GLUX9701BSI-CBM-NCN-AU1
    BSI image sensor, 84 pins CLCC package. UV epoxy sealed D 263® T eco glass lid without AR coating on both sides. Grade 1
资料下载
应用领域
Microluminescence Imaging
