GSENSE系列
The GSENSE series is a world leading scientific CMOS image sensor family, designed with correlated multiple sampling for extreme low noise, true HDR for high dynamic range and optional backside illumination technology for quantum efficiency of up to 97%. Primary applications include scientific imaging, medical imaging, spectroscopy, fluorescence imaging, astronomy, high energy physics, and high-end surveillance.
立即咨询
Large Format
BSI
High Dynamic
Low Noise

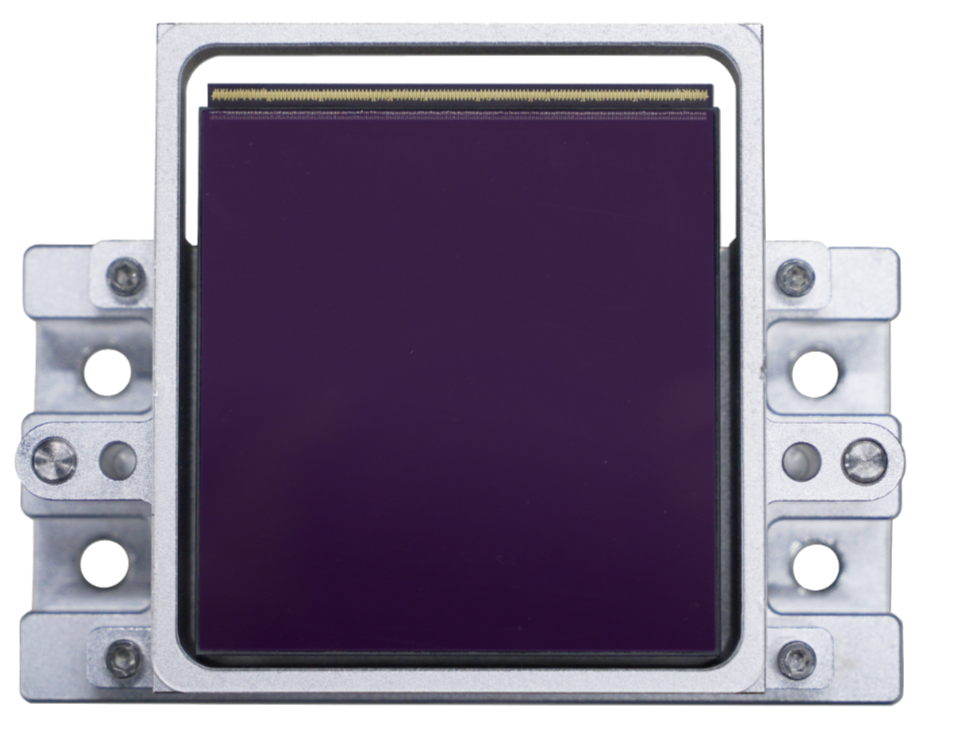

GSENSE1081BSI
81 MP 10 μm 7.96" SCIENTIFIC CMOS IMAGE SENSOR
GSENSE1081BSI is designed with large imaging area for demanding scientific imaging applications. Sensor provides active resolution of 8900(H) x 9120(V) with 10 μm x 10 μm pixel size. An inter-scene dynamic range is 84.5 dB combined from maximum full well capacity of 90.68 ke‾ and readout noise of 5.35 e‾. Sensor supports on-chip 16 bit ADC, with LVDS channel running up to 250 MHz, providing frame rate up to 0.34 fps. GSENSE1081BSI is assembled in high-end SiC package with one flexi-cable, by this design, the dead space at 3x package sides is minimized and makes sensor well fit for applications require a mosaic sensor array. The thermal expansion of SiC is close to silicon die which is suitable for deep cooling applications.
  • Key Features and Benefits

    97% Peak QE (610 nm)

    Anti-Glowing

    On-chip 16 bit Column-Parallel ADC

    Silicon Carbide with one Flexi-Cable

    Dark Current：0.00373 e⁻/pixel/s (-70 ℃)

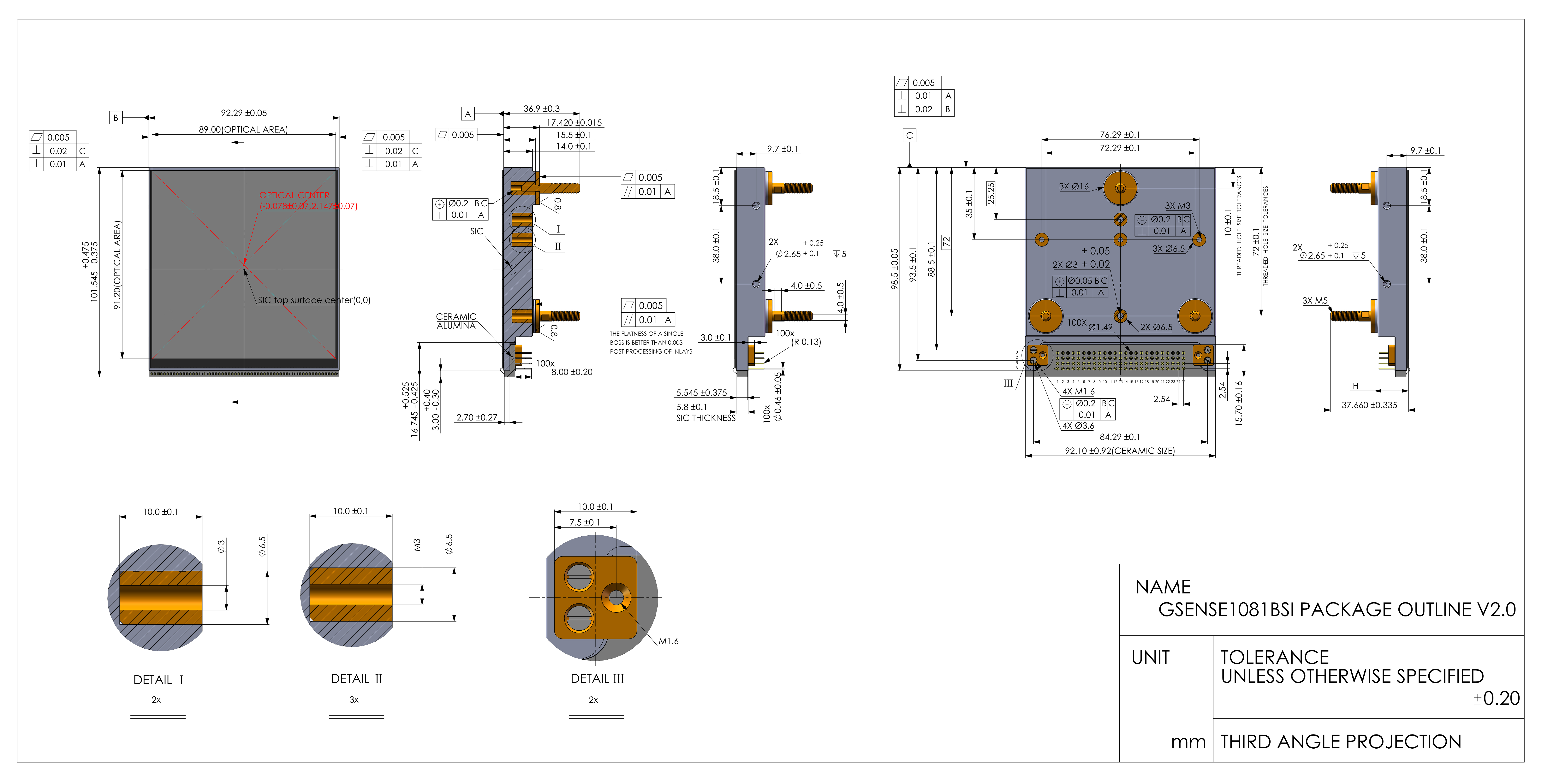

  • Package drawing

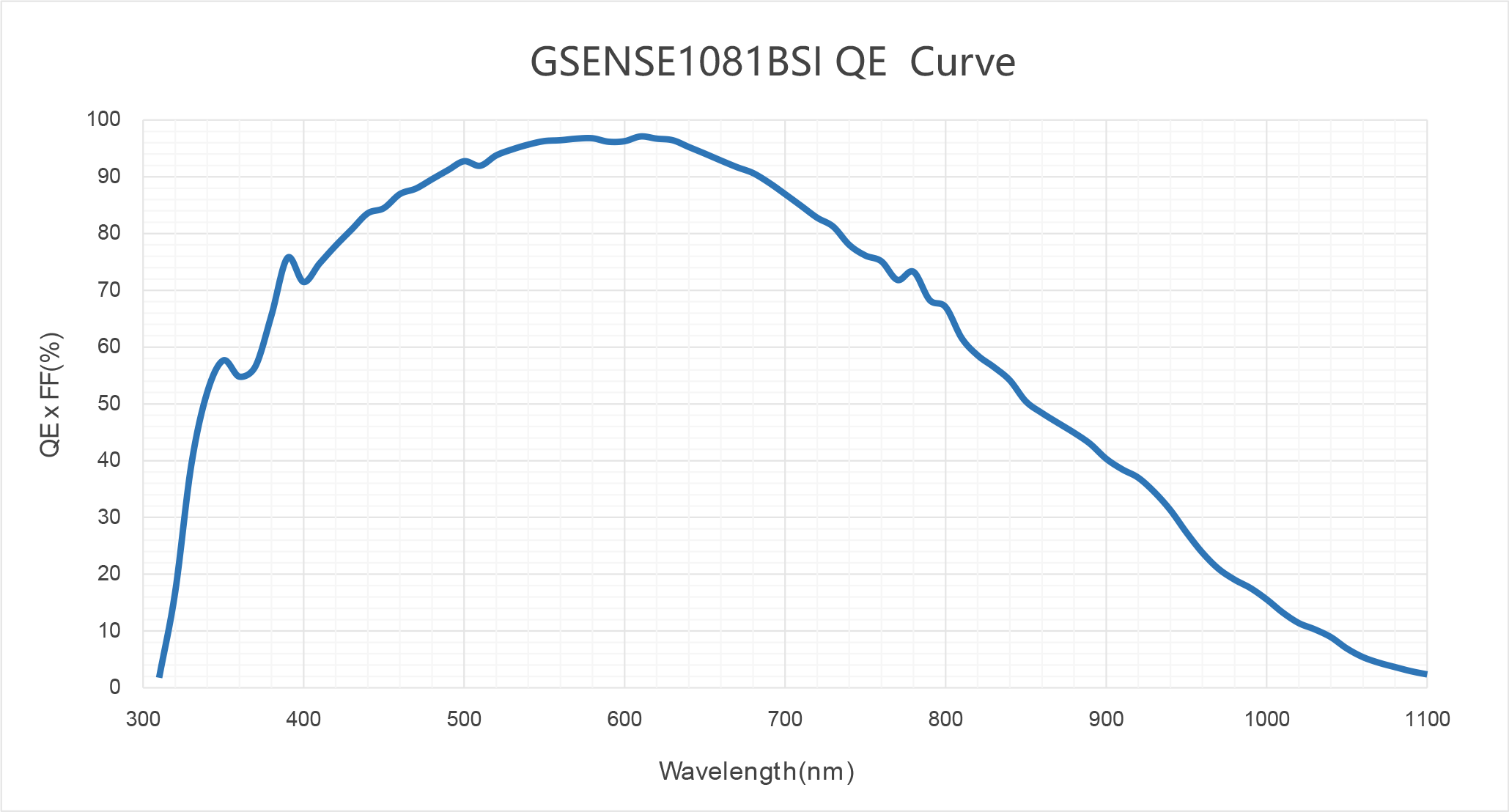

  • QE Curve
GSENSE1081BSI
GSENSE1081BSI
产品指标

  • Resolution

    81 MP

    Nr of Active Pixels

    8900 (H) x 9120 (V)

  • Optical Format

    7.96"

    Pixel Size

    10 μm x 10 μm

  • Photosensitive Area

    89.00 mm x 91.20 mm

    Shutter Type

    Rolling Shutter

  • Peak QE

    97.11% (610 nm)

    Full Well Capacity

    90.68 ke‾

  • Temporal Noise

    5.35 e‾

    Dark Current

    0.00373 e⁻/pixel/s (-70 ℃)

  • Dynamic Range

    84.5 dB

    Max Frame Rate

    0.34 fps (16 bit) 0.94 fps (15 bit)

  • Max. SNR

    49.5 dB

    ADC

    15/16 bit

  • Output Format

    5 ch LVDS

    Channel Multiplexing

    -

  • Max. Data Rate

    500 Mbps (16 bit) 1.6 Gbps (15 bit)

    Chroma

    Mono

  • Power Consumption

    1.4 W

    Supply Voltage

    5 V (analog) 1.8 V (digital)

  • Package

    100 pins SiC package (92.29 mm x 101.55 mm)

    Availability

    Engineering Samples (ES)

产品编码
  • GSENSE1081BSI-BBM-NPN-NN0
    RevB BSI Image Sensor. Monochrome without microlens on die. Silicon carbide with 100 pins Al₂O₃ PGA ceramic package and flexible cable. Without glass lid.Grade 0.
  • GSENSE1081BSI-BBM-NPN-NN2
    RevB BSI Image Sensor. Monochrome without microlens on die. Silicon carbide with 100 pins Al₂O₃ PGA ceramic package and flexible cable. Without glass lid.Grade 2.
  • GSENSE1081BSI-BBM-NPN-NN1
    RevB BSI Image Sensor. Monochrome without microlens on die. Silicon carbide with 100 pins Al₂O₃ PGA ceramic package and flexible cable. Without glass lid.Grade 1.
资料下载
应用领域
Astronomy
